Land Rover Defender: Door Mirror Wade Sensor
REMOVAL AND INSTALLATION
REMOVAL
NOTE:
- This procedure contains illustrations showing certain components
removed to provide extra clarity.
- This procedure contains some variation in the illustrations depending
on the vehicle specification, but the
essential information is always correct.
1. Remove the door mirror cover.
2.
.png)

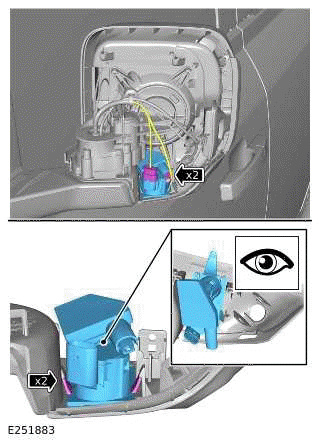

- Disconnect the 2 electrical connectors.
- Release the 2 clips.
- Remove the assembly.
3.
.png)

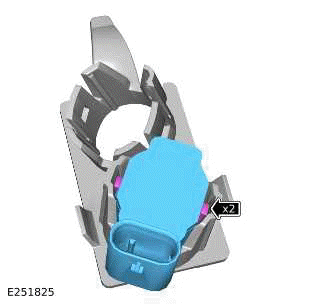

- Release the 2 clips.
- Remove the approach lamp.
4.
.png)

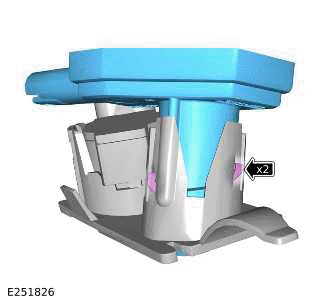

- Release the 2 clips.
- Remove the door mirror wade sensor.
INSTALLATION
1.
.png)
- Install the door mirror wade sensor.
- Secure the 2 clips.
2.
.png)
- Install the approach lamp.
- Secure the 2 clips.
3.
.png)
- Install the assembly.
- Secure the 2 clips.
- Connect the 2 electrical connectors.
4. Install the door mirror cover.
