Land Rover Defender: Full-size spare wheel and tire change
The Tire Pressure Monitoring System (TPMS) automatically recognizes any changes in wheel positions. The vehicle must be stationary for 15 minutes during the wheel and tire change, to make sure that the system can detect the change.
After driving above 16 mph (25 km/h), any warning should update within approximately 5 minutes.
Note: Re-inflate the tire, within close proximity of the vehicle, following repairs to a full-size spare wheel fitted with tire pressure monitoring. The TPMS warning lamp may illuminate if tire inflation is not carried out within close proximity of the vehicle. Should this occur, re-inflate the tire within 5 m of the vehicle.
Note: The full-size spare tire's pressure should always be maintained at the highest recommended cold inflation pressure for that tire size, displayed on the tire pressure label.
For information on the tire pressures, refer to the label located at the base of the driver's door opening.
Alternatively, visit www.ownerinfo.landrover.com.
TYPE APPROVAL NUMBERS
Tire Pressure Monitoring System (TPMS):
United States of America
This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions:
- This device may not cause harmful interference, and
- this device must accept any interference received, including interference that may cause undesired operation.
Canada
This device complies with Industry Canada Standard IC - RSS-210. Operation is subject to the following two conditions:
- this device may not cause interference, and
- this device must accept any interference, including interference that may cause undesired operation of the device.
Note: Changes or modifications, not expressly approved by the manufacturer, could void the user's authority to use the equipment.
Type approval numbers

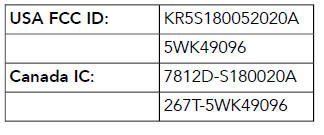

The 433 MHz TPMS Radio Frequency (RF) approval numbers for the USA and Canada are:
