Land Rover Defender: Tailgate Latch
REMOVAL AND INSTALLATION
REMOVAL
CAUTION: Make sure to protect the paintwork.
NOTES:
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- This procedure contains illustration showing certain components removed to provide extra clarity.
1. Remove the tailgate trim panel.
2. Disconnect the startup battery ground cable.
3.
.png)

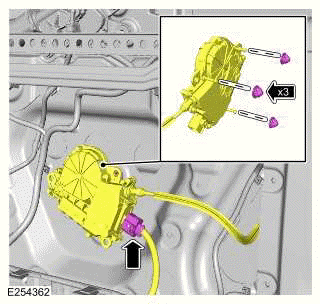

- Release the tailgate latch actuator from the 3 retainer clip.
- Disconnect the electrical connector from the tailgate latch actuator.
4.
.png)

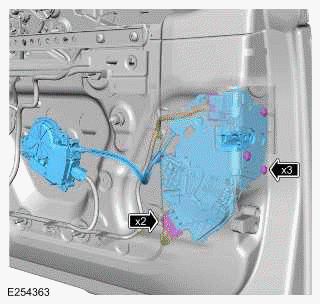

- Disconnect the 2 electrical connectors from the tailgate latch.
- Remove the 3 bolts.
- Remove the tailgate latch assembly.
5.
.png)

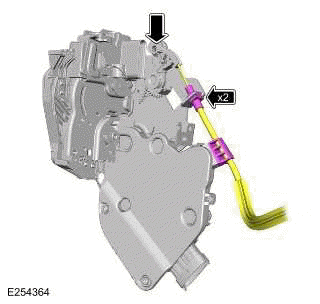

Disconnect the actuator release cable from the tailgate latch.
INSTALLATION
1. Connect the actuator release cable to the tailgate latch.
2.
- Install the tailgate latch assembly.
- Install and tighten the 3 bolts.
Torque: 7Nm
- Connect the 2 electrical connectors to the tailgate latch.
3.
.png)
- Connect the electrical connector to the tailgate latch actuator.
- Install the tailgate latch actuator.
4. Connect the startup battery ground cable.
5. Install the tailgate trim panel.
