Land Rover Defender: Steering Column
SPECIFICATIONS

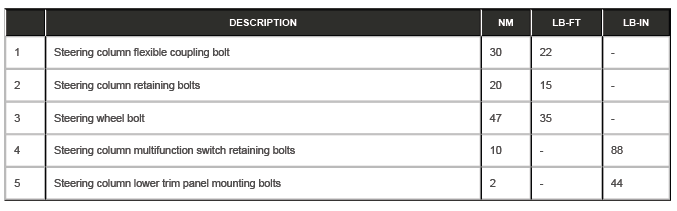

Torque Specifications
NOTE: Numbers with a green background are a single use component.

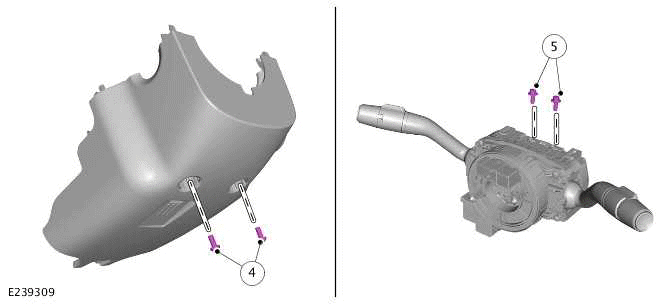

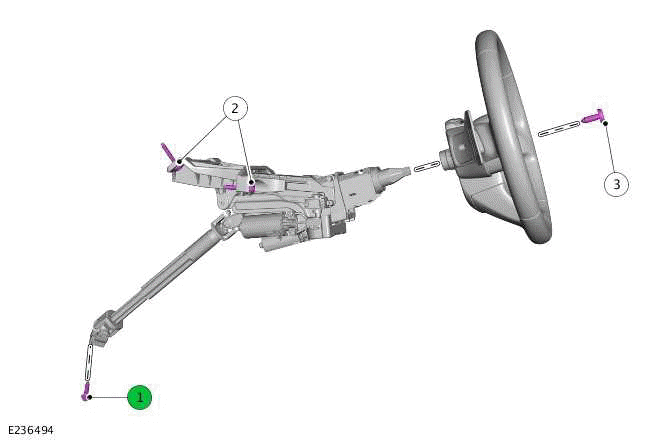

COMPONENT TORQUE LOCATION
.png)
.png)
.png)
- Steering Column - Description and Operation
- Steering Column - Diagnosis and Testing
- Steering Column - Removal and Installation
- Steering Wheel
