Land Rover Defender: Sports Pedal Kit - Automatic Transmission
SPORTS PEDAL KIT - AUTOMATIC TRANSMISSION - PART NUMBER: VPLHS0044
REMOVAL AND INSTALLATION
VPLHS0044, VPLWS0475
WARNING: Accessories which are not correctly installed can be dangerous. Read the instructions carefully prior to installation. Comply with instructions at all times. If in doubt, contact your nearest approved retailer.
CAUTION: Do not use sharp metal tools to install the sports pedal kit.
NOTES:
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- This procedure contains illustrations for left hand drive vehicles, right hand drive vehicles are similar.

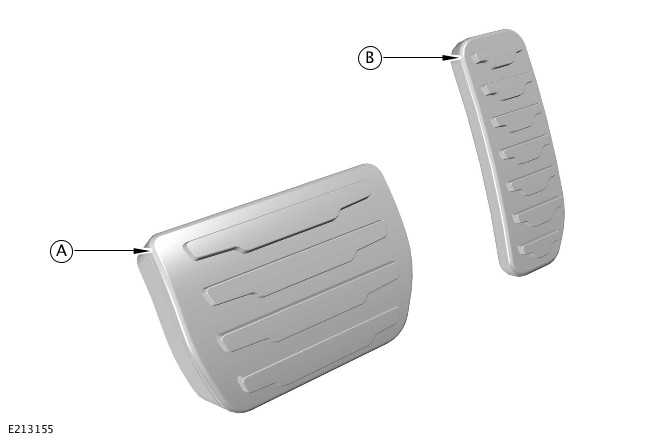

.png)
REMOVAL
1.
CAUTION: Discard the components.
.png)

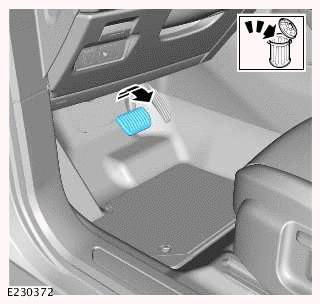

Remove and discard the brake pedal cover.
INSTALLATION
CAUTION: Installing of the pedal covers must be completed by hand. Do not use sharp metal tools to install the sports pedal kit. Failure to follow this instruction may result in damage to the component.
1.
.png)

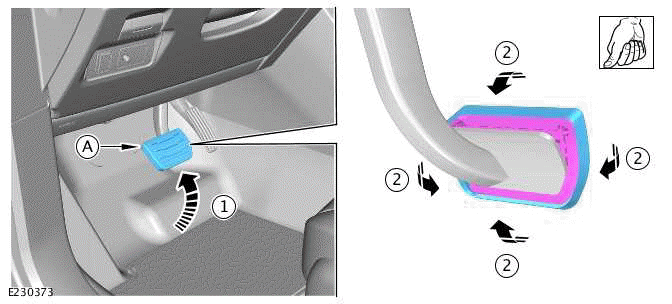

Install and secure the sports brake pedal cover.
2.
.png)

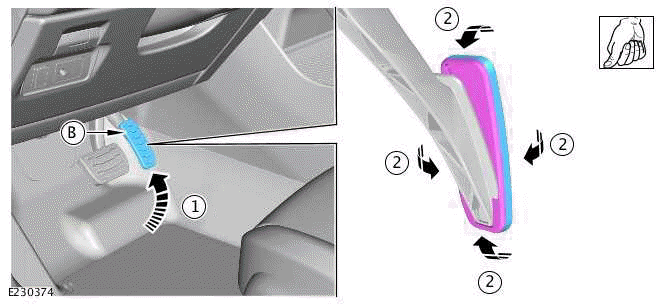

Install and secure the sports accelerator pedal cover.
3.
.png)
Check the safe and correct installation of the components.
