Land Rover Defender: Windshield Sunshade
Land Rover Defender 2020-2026 Service Manual / General Information / Accessory Information / Windshield Sunshade
WINDSHIELD SUNSHADE - PART NUMBER: VPLES0571
REMOVAL AND INSTALLATION
VPLZS0500, VPLES0571
WARNING: Accessories which are not correctly installed can be dangerous. Read the instructions carefully prior to installation. Comply with instructions at all times. If in doubt, contact your nearest approved retailer.
NOTES:
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- This procedure contains illustrations for left hand drive vehicles, right hand drive vehicles are similar.
.png)
INSTALLATION
1.
.png)

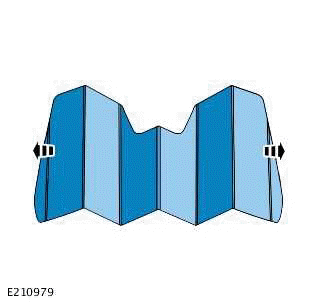

Unpack and expand the windshield sunshade.
2.
.png)

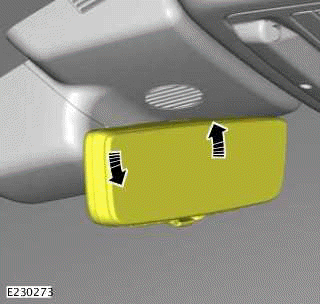

Reposition the rear view mirror.
3.
NOTE: Make sure that the 'Range Rover' signs are on the outside of the windshield sunshade.
.png)

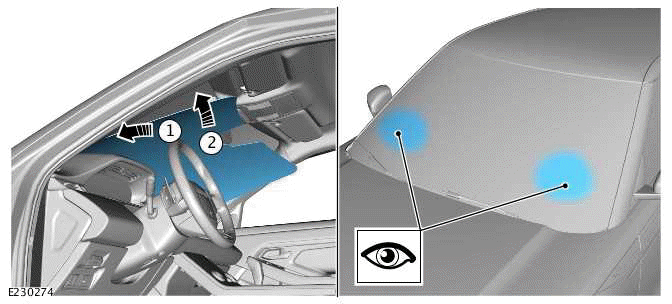

Install the windshield sunshade as illustrated.
4.
.png)
Reposition the rear view mirror.
5.
.png)

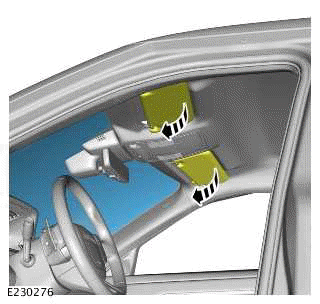

Reposition the sun visors as illustrated.
6.
.png)

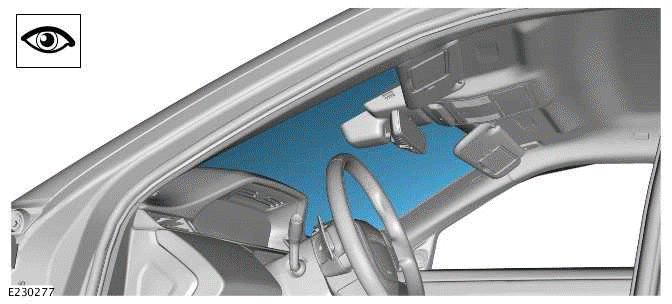

Check the windshield sunshade for correct installation.
