Land Rover Defender: Seat Back Tidy

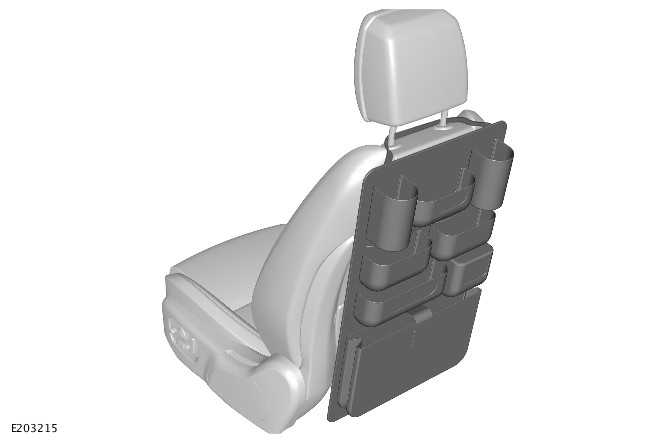

SEAT BACK TIDY - PART NUMBER: VPLVS0181
REMOVAL AND INSTALLATION
WARNING: Accessories which are not correctly installed can be dangerous. Read the instructions carefully prior to installation. Comply with instructions at all times. If in doubt, contact your nearest approved retailer.
.png)
INSTALLATION
1. Raise the front row seat head restraint.
2.
.png)

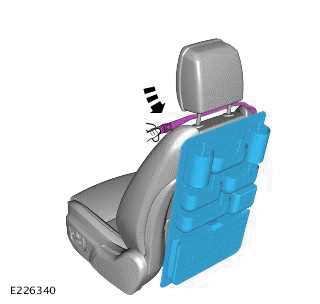

Wrap the top strap around the front row seat head restraint.
3.
.png)
4.
.png)

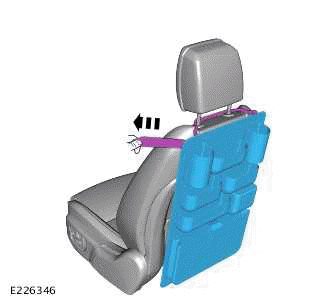

Pull on the strap to tighten the top strap around the front row seat head restraint.
5.
.png)

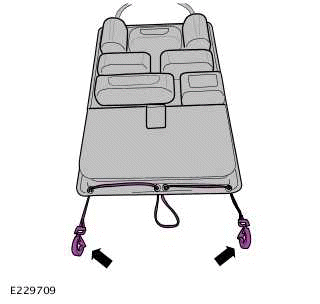

The base of the seat back tidy is secured to the front row seat using 2 hooks and a drawstring cord.
6.
.png)

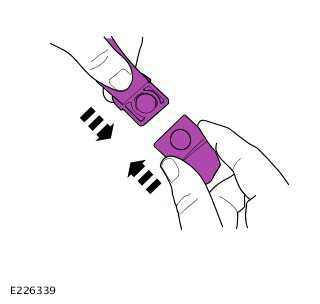

Open the 2 hooks.
7.
.png)

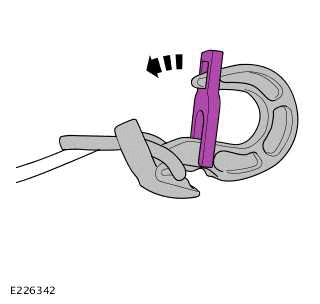

The 2 hooks will fasten to the underside of the front row seat.
8.
.png)

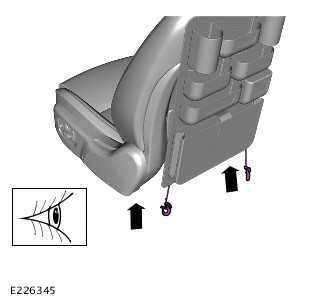

Attach the 2 hooks to the underside of the front row seat.
9.
.png)

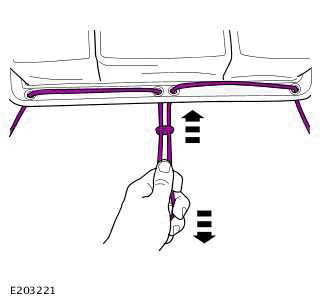

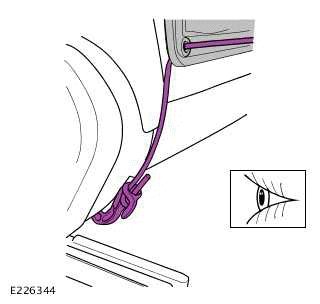

Pull on the drawstring to tighten the hook cords and secure the base of the seat back tidy.
10. Move the front row seat head restraint to the required position.
