Land Rover Defender: Second Row Seat Cushion Blower

Land Rover Defender 2020-2024 Service Manual / Body and Paint / Seating / Second Row Seat Cushion Blower

REMOVAL AND INSTALLATION

REMOVAL

NOTE:

This procedure contains illustrations showing certain components removed to provide extra clarity.
This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations for right side components, left side components are similar.

1. Disconnect the startup battery ground cable.

2. Remove the second row seats.

Second Row Seat Cushion Blower

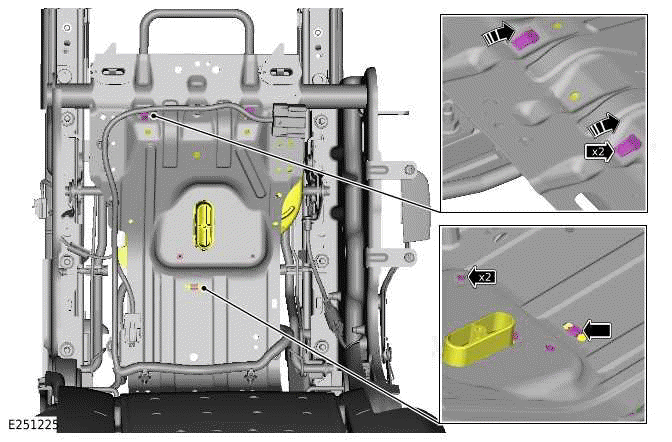

Release the 5 clips.

Second Row Seat Cushion Blower

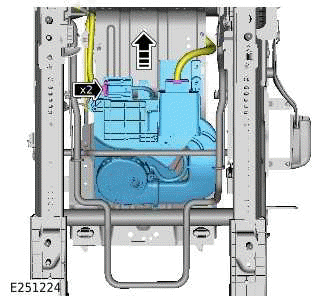

Disconnect the 2 electrical connectors.
Remove the second row seat cushion blower.

INSTALLATION

Install the second row seat cushion blower.
Connect the 2 electrical connectors to the blower.

2. Install the 5 second row seat cushion clips.

3. Install the second row seat.

4. Connect the startup battery ground cable.
