Land Rover Defender: Second Row Right Seat Cushion Heater Element
Land Rover Defender 2020-2026 Service Manual / Body and Paint / Seating / Second Row Right Seat Cushion Heater Element
REMOVAL AND INSTALLATION
REMOVAL
NOTE:
- This procedure contains illustrations showing certain components removed to provide extra clarity.
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- This procedure contains illustrations for right side components, left side components are similar.
1. Remove the second row right seat cushion cover.
2.
.png)

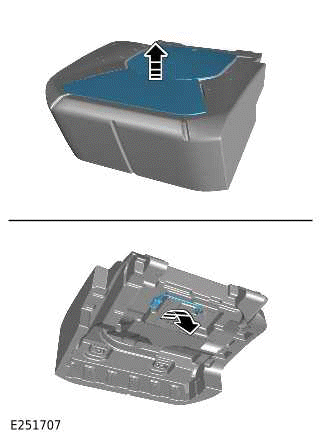

Remove the second row seat cushion heater element.
INSTALLATION
1. Install the second row seat cushion heater element.
2. Install the second row seat cushion cover.
