Land Rover Defender: Rocker Panel Moulding - 90
Land Rover Defender 2020-2026 Service Manual / Body and Paint / Exterior Trim and Ornamentation / Rocker Panel Moulding - 90
REMOVAL AND INSTALLATION
REMOVAL
NOTES:
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- This procedure contains illustrations showing certain components removed to provide extra clarity.
- This procedure contains illustrations for left components, right components are similar.
1. Raise and support the vehicle on a suitable 2-post lift.
2. Remove the front fender moulding.
3.
.png)

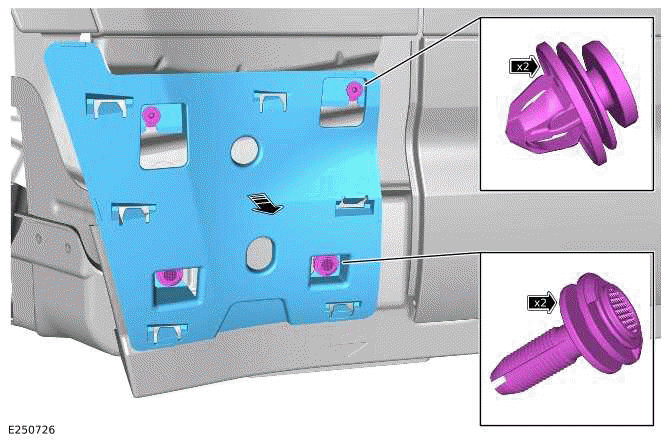

- Remove the 2 lower clips.
- Release the 2 upper clips.
- Remove the front fender moulding bracket.
4.
.png)

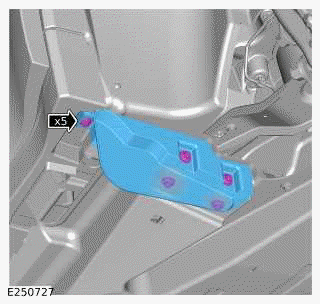

- Remove the 5 bolts.
- Remove the rear wheel arch liner finisher panel.
5.
CAUTION: Take extra care not to damage the component.
.png)

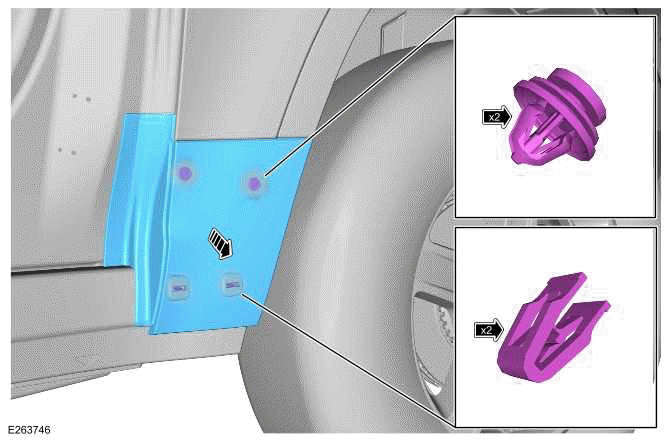

Remove the rear fender moulding at the 4 clips.
6.
.png)

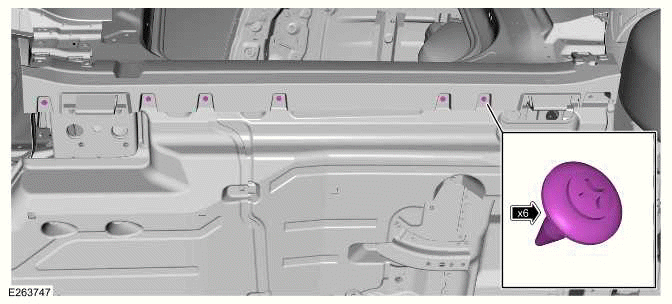

Remove the 6 screvits.
7.
CAUTION: Take extra care not to damage the component.
.png)

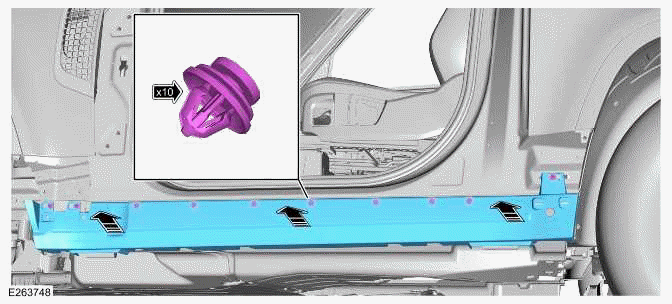

Remove the rocker panel at the 10 clips.
INSTALLATION
1.
CAUTION: Take extra care not to damage the component.
- Install the rocker panel at the 10 clips.
- Install the 6 lower screvits.
2.
CAUTION: Take extra care not to damage the component.
Install the rear fender moulding at the 4 clips.
3.
- Install the rear wheel arch liner finisher panel.
- Install and tighten the 5 bolts.
Torque: 4.1Nm
4.
- Install the front fender moulding bracket to the 2 clips.
- Install and secure the 2 lower clips.
5. Install the front fender moulding.
