Land Rover Defender: Rear Wheel Arch Liner
Land Rover Defender 2020-2025 Service Manual / Body and Paint / Exterior Trim and Ornamentation / Rear Wheel Arch Liner
REMOVAL AND INSTALLATION
REMOVAL
NOTE:
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- This procedure contains illustrations showing certain components removed to provide extra clarity.
- This procedure contains illustrations for left side components, right side components are similar.
1. Raise and support the vehicle on a suitable 2 post lift.
2. Remove the wheel and tire.

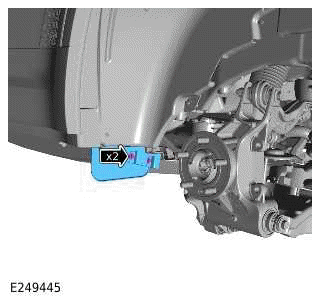

3.
.png)
- Remove the 2 bolts.
- Remove the rear wheel arch air deflector.

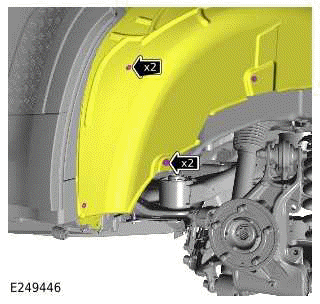

4.
.png)
- Remove the 2 bolts.
- Release the 2 clips.
- Release the front section of the wheel arch liner.

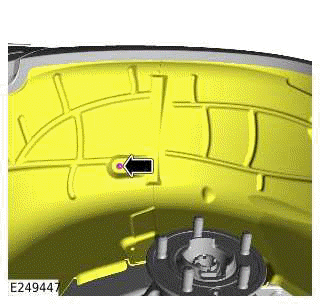

5.
.png)
- Remove the bolt.
- Release the upper section of the wheel arch liner.

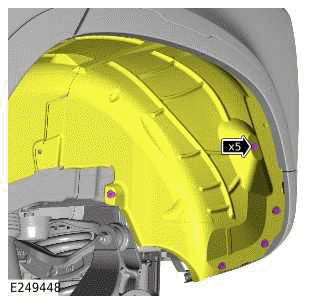

6.
.png)
- Release the 5 clips.
- Release the rear section of the wheel arch liner.

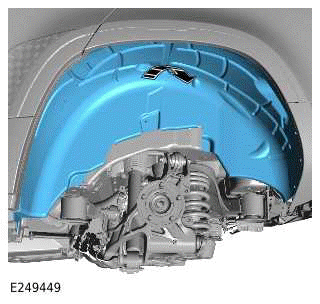

7.
.png)
Remove the rear wheel arch liner.
INSTALLATION
1.
- Install the rear wheel arch liner.
- Install the 5 clips.
2.
- Install and tighten the bolt.
Torque: 10Nm
3.
- Install and tighten the 2 bolts.
Torque: 10Nm
- Install the 2 clips.
4.
- Install the rear wheel arch air deflector.
- Install and tighten the 2 bolts.
Torque: 10Nm
5. Install the wheel and tire.
