Land Rover Defender: Right Upper Control Arm

REMOVAL AND INSTALLATION

SPECIAL TOOL(S)

Right Upper Control Arm

JLR-204-803

Splitter, Upper Arm

GENERAL EQUIPMENT

Right Upper Control Arm

PART(S)

Right Upper Control Arm

REMOVAL

CAUTION: Nuts and bolts must be tightened with vehicle at normal ride height. Failure to follow this instruction may result in damage to the component.

NOTES:

The following step(s) applies to: Vehicles with air suspension

1. Use the Jaguar Land Rover (JLR) approved diagnostic equipment, depressurize air suspension system.

General Equipment: Jaguar Land Rover approved diagnostic equipment

The following step(s) applies to: Vehicles with fuel fired booster heater

2. Remove the Fuel Fired Booster Heater (FFBH) assembly.

The following step(s) applies to: All vehicles

3. Raise and support the vehicle on a suitable 2-post lift.

4. Remove the right wheel and tire assembly.

5.

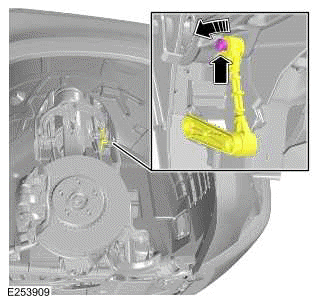

CAUTION: Do not use excessive force to release the height sensor.

Right Upper Control Arm

Release the height sensor from the right upper control arm.

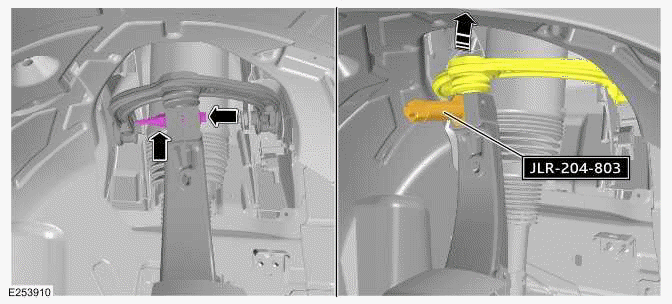

6.

Right Upper Control Arm

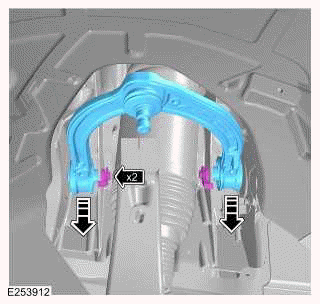

7.

Right Upper Control Arm

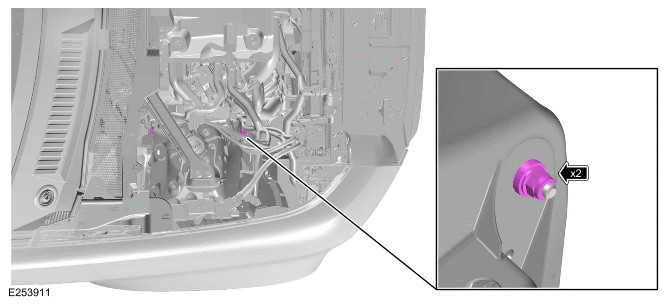

Remove the 2 nuts.

8.

Right Upper Control Arm

INSTALLATION

The following step(s) applies to: All vehicles

1.

2.

CAUTION: Nuts must be tightened with vehicle at normal ride height.

Install and tighten the 2 right upper control arm to body nuts.

Torque: 60Nm

3. Install the right wheel and tire assembly.

The following step(s) applies to: Vehicles with fuel fired booster heater

4. Install the FFBH assembly.

The following step(s) applies to: Vehicles with air suspension

5. Use the JLR approved diagnostic system, to pressurize the air suspension.

General Equipment: Jaguar Land Rover approved diagnostic equipment

6. Use the JLR approved diagnostic system, to calibrate the suspension ride height.

General Equipment: Jaguar Land Rover approved diagnostic equipment
