Land Rover Defender: Rear Integrated Control Panel
Land Rover Defender 2020-2024 Service Manual / Electrical / Climate Control System / Climate Control / Rear Integrated Control Panel
REMOVAL AND INSTALLATION
REMOVAL
NOTES:
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- This procedure contains illustrations showing certain components removed to provide extra clarity.
1. Remove the front row seats on both side.
2. Disconnect the startup battery ground cable.
3.
.png)

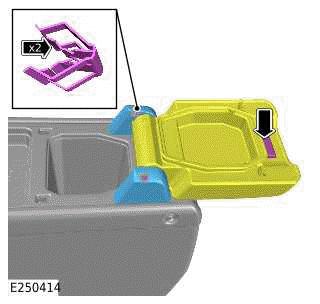

- Open the floor console stowage compartment lid as illustrated.
- Remove the floor console stowage compartment lid 2 covers.
4.
NOTE: Repeat this step for the other side.
.png)

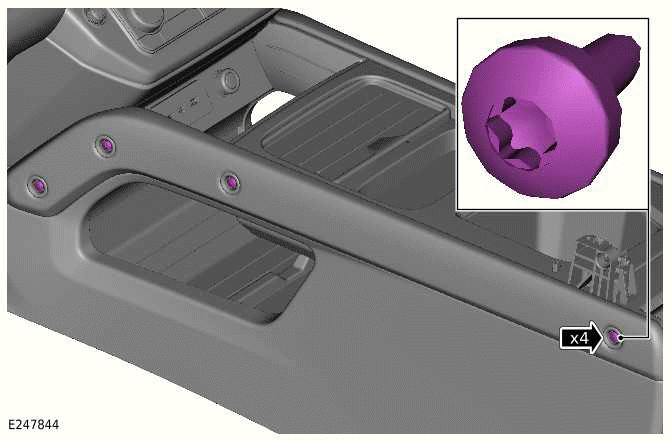

Remove the 4 bolts.
5.
CAUTION: Take extra care not to damage the component.
NOTE: Repeat this step for the other side.
.png)

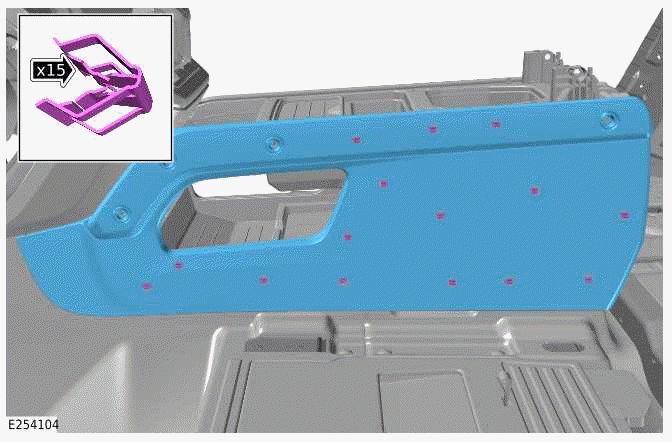

- Release the 15 clips.
- Remove the floor console side trim panel.
6.
CAUTION: Take extra care not to damage the component.
.png)

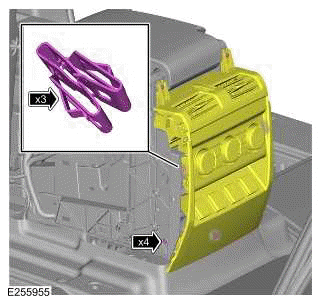

- Remove the 4 screws.
- Release the 3 clips.
- Release the floor console rear trim panel.
7.
.png)

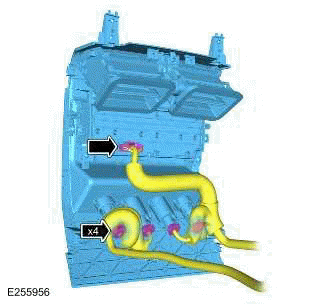

- Disconnect the 5 electrical connectors.
- Remove the floor console rear trim panel.
8.
.png)

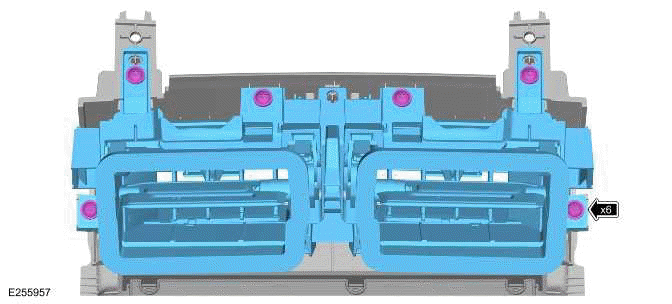

- Remove the 6 screws.
- Remove the rear center air vent assembly.
9.
CAUTION: Take extra care not to damage the component.
.png)

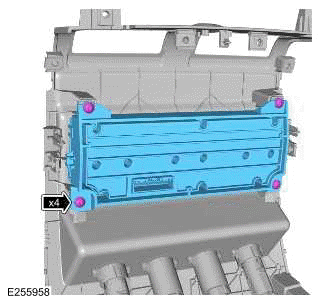

- Remove the 4 screws.
- Remove the Rear Integrated Control Panel (FCIMB).
INSTALLATION
1.
CAUTION: Take extra care not to damage the component.
- Install the Rear Integrated Control Panel (FCIMB) to the floor console rear trim panel.
- Install and tighten the 4 screws.
Torque: 1.2Nm
2.
- Install the rear center air vent assembly to the floor console rear trim panel.
- Install and tighten the 6 screws.
Torque: 1.2Nm
3.
- Connect the 5 electrical connectors to the FCIMB and the 4 power sockets.
- Install the floor console rear trim panel at the 3 clips to the floor console.
- Install and tighten the 4 screws.
Torque: 1.2Nm
4.
NOTES:
- Repeat this step for the other side.
- Make sure that the bolts are centered in the bolt hole.
- Install the floor console side trim panel at the 15 clips.
- Install and tighten the 4 bolts.
Torque: 2.2Nm
5.
- Install the floor console stowage compartment lid 2 covers at the 2 clips.
- Close the floor console stowage compartment lid.
6. Connect the startup battery ground cable.
7. Install the front row seats on both side.
