Land Rover Defender: Rear Door Lower Moulding
Land Rover Defender 2020-2024 Service Manual / Body and Paint / Exterior Trim and Ornamentation / Rear Door Lower Moulding
REMOVAL AND INSTALLATION
REMOVAL
CAUTION: Protect the surrounding paintwork to avoid damage.
NOTES:
- This procedure contains illustrations for left side components, right side components are similar.
- This procedure contains illustrations showing certain components removed to provide extra clarity.
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.

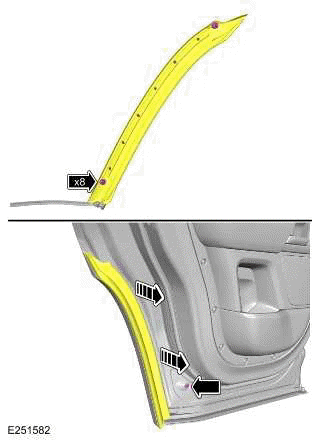

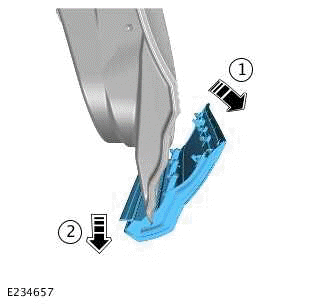

1.
.png)
- Remove the screw.
- Release the 8 clips.
- Release the lower weatherstrip as illustrated.

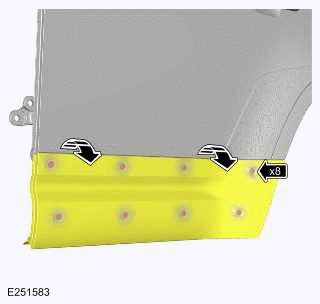

2.
.png)
Release the 8 clips.
3.
.png)
Remove the rear door lower moulding as illustrated.
INSTALLATION

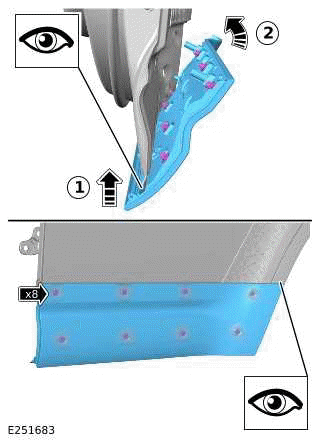

1.
.png)
Install the rear door lower moulding as illustrated.
2.
- Install and tighten the screw.
- Install the lower weatherstrip.
