REMOVAL AND INSTALLATION
REMOVAL
NOTE:
- This procedure contains illustrations showing certain components removed to provide extra clarity.
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
1.
.png)

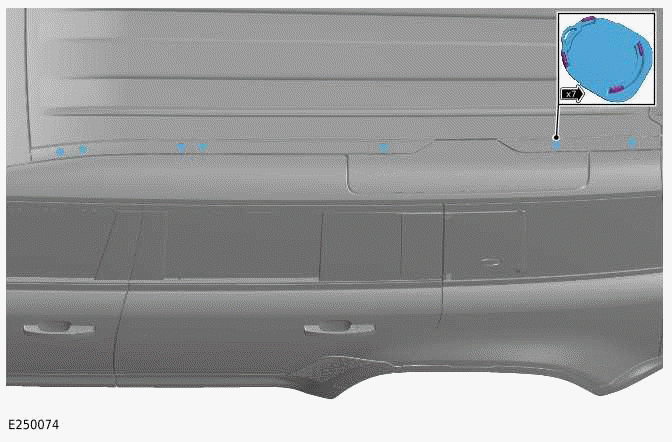

Remove the 7 roof moulding covers.
2.
.png)

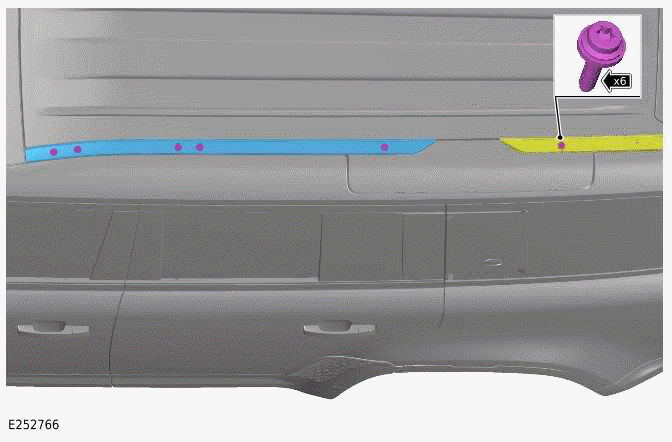

- Remove the 6 bolts.
- Remove the front section of the roof moulding.
3.
.png)

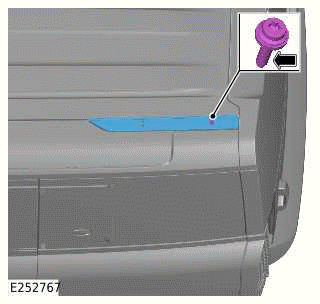

- Remove the bolt.
- Remove the rear section of the roof moulding.
INSTALLATION
1.
- Install the rear section of the roof moulding.
- Install and tighten the M6 bolt.
Torque: 8Nm
2.
- Install the front section of the roof moulding.
- Install and tighten the 6 M8 bolts.
Torque: 8Nm
3. Install the 7 roof moulding covers.
