Land Rover Defender: Rear Quarter Panel Moulding
Land Rover Defender 2020-2026 Service Manual / Body and Paint / Exterior Trim and Ornamentation / Rear Quarter Panel Moulding
REMOVAL AND INSTALLATION
GENERAL EQUIPMENT
.png)
REMOVAL
CAUTION: Always protect the paintwork and the window when removing exterior components.
NOTES:
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- This procedure contains illustrations showing certain components removed to provide extra clarity.
- This procedure contains illustrations for left components, right components are similar.
1. Open the tailgate.
2.
.png)

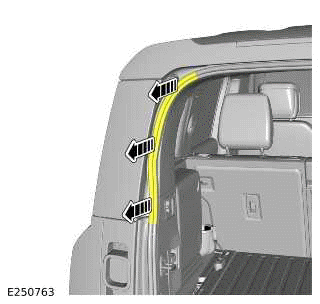

Release the tailgate aperture seal as illustrated.
3.
CAUTIONS:
- Do not use metal tools during this operation, removal of the component(s) must be completed with a plastic trim tool.
- Take extra care not to damage the component.
.png)

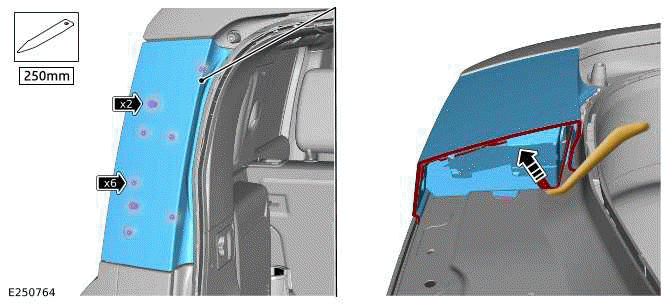

Use a suitable plastic trim tool to remove the rear quarter panel moulding at the 6 clips and the 2 guide pins, as illustrated.
General Equipment: Interior trim remover
INSTALLATION
1. Install the rear quarter panel moulding to the 6 clips.
2. Install the tailgate aperture seal.
