Land Rover Defender: Rear Door Check Arm
REMOVAL AND INSTALLATION
REMOVAL
CAUTION: Protect the surrounding paintwork to avoid damage.
NOTES:
- This procedure contains illustrations for left side components, right side components are similar.
- This procedure contains illustrations showing certain components removed to provide extra clarity.
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
1. Disconnect the startup battery ground cable.
2. Remove the rear door trim panel.
3.
.png)

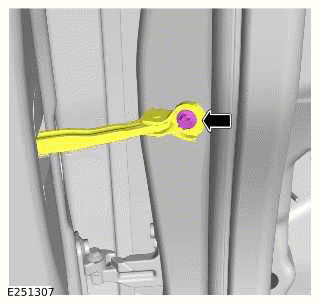

- Remove the bolt.
- Disconnect the rear door check arm.
4.
.png)

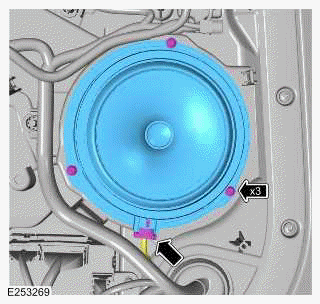

- Disconnect the electrical connector from the bass speaker.
- Remove the 3 screws.
- Remove the rear door bass speaker.
5.
.png)

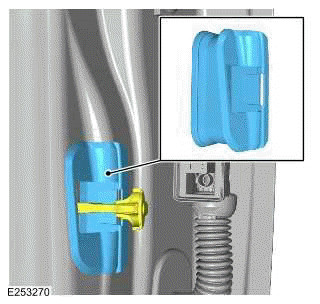

Remove the rubber access cover.
6.
.png)

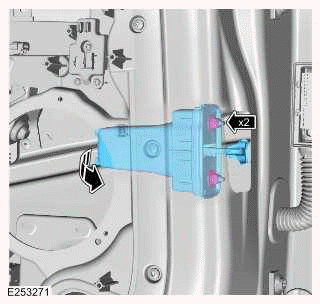

- Remove the 2 nuts.
- Remove the rear door check arm.
INSTALLATION
1.
- Install the rear door check arm.
- Install and tighten the 2 nuts.
Torque: 9Nm
2. Install the access cover.
3.
- Install the rear door bass speaker.
- Connect the electrical connector to the bass speaker.
- Install and tighten the 3 screws.
Torque: 2Nm
4.
- Connect the rear door check arm.
- Install and tighten the bolt.
Torque: 25Nm
5. Install the rear door trim panel.
6. Connect the startup battery ground cable.
