Land Rover Defender: Rear Door Weatherstrip
Land Rover Defender 2020-2026 Service Manual / Body and Paint / Body Closures / Rear Door Weatherstrip
REMOVAL AND INSTALLATION
REMOVAL
NOTES:
- This procedure contains illustrations for left side components, right side components are similar.
- This procedure contains illustrations showing certain components removed to provide extra clarity.
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
1.
.png)

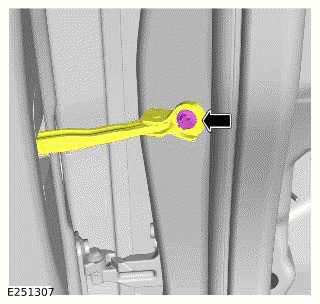

- Remove the bolt.
- Disconnect the rear door check arm.
2.
.png)

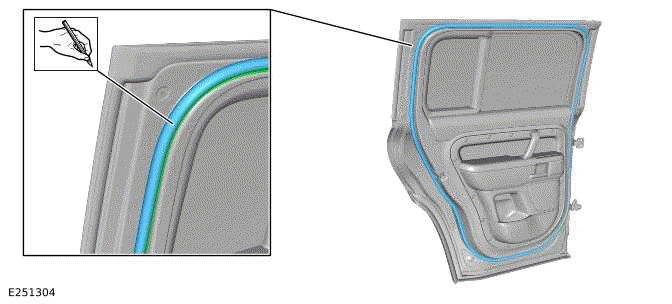

Use a suitable non-permanent marker, mark the installed position of existing seal.
3.
.png)

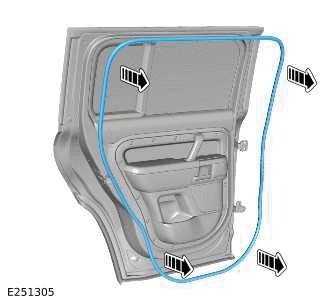

Remove the rear door weatherstrip.
INSTALLATION
1. Clean the adhesive contact area.
2.
.png)

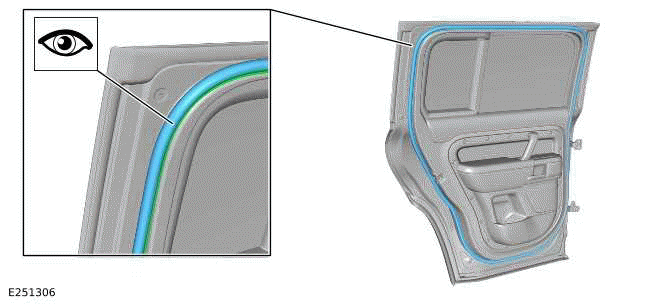

Install the rear door weatherstrip to the marked outline.
3.
.png)
- Connect the rear door check arm.
- Install and tighten the bolt.
Torque: 24Nm
