Land Rover Defender: Tailgate

REMOVAL AND INSTALLATION

REMOVAL

CAUTION: Protect the surrounding paintwork to avoid damage.

NOTES:

1. Disconnect the startup battery ground cable.

2. Remove the tailgate window.

3. Remove the tailgate latch.

4. Remove the rear window wiper motor.

5.

NOTE: Repeat the step for the other side.

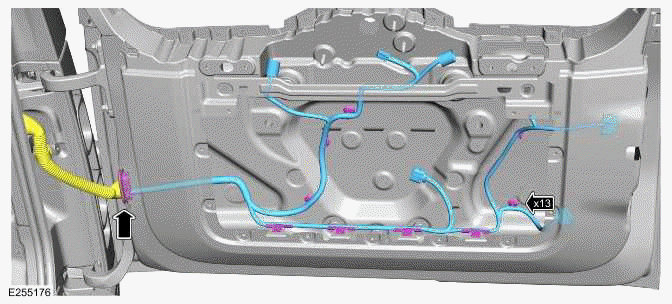

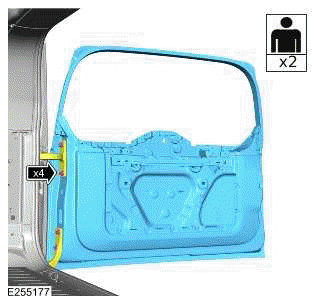

Tailgate

6.

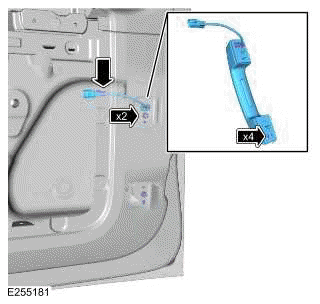

Tailgate

7.

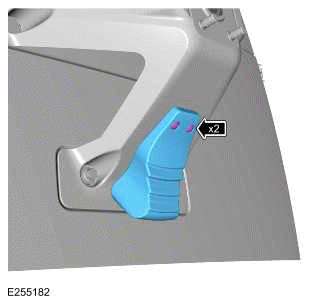

Tailgate

8.

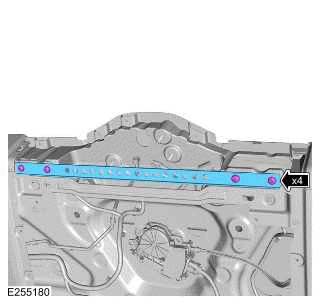

Tailgate

9.

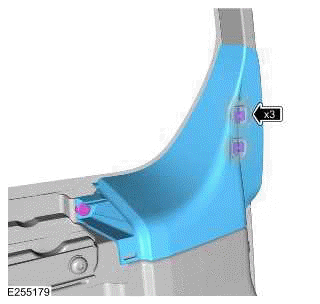

Tailgate

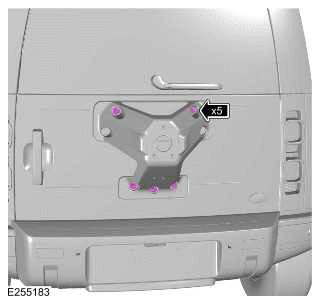

Remove the 5 bolts.

10.

CAUTION: The component(s) may be heavy. Take extra care when handling.

NOTE: This step requires the aid of another technician.

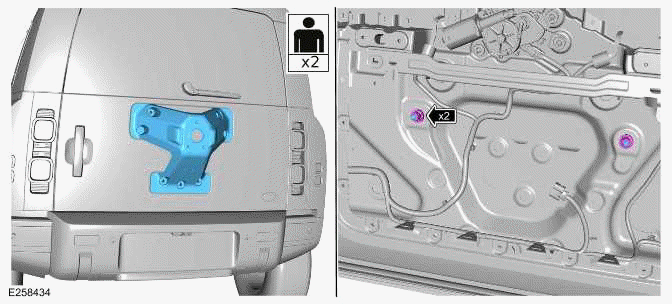

Tailgate

11.

Tailgate

12.

Tailgate

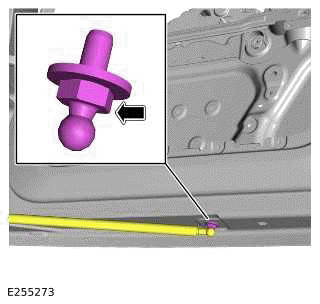

Remove the strut rod bolt.

13.

WARNING: This step requires the aid of another technician.

Tailgate

INSTALLATION

1.

WARNING: This step requires the aid of another technician.

2. Install and tighten the strut rod bolt.

Torque: 48Nm

3.

4.

CAUTION: The component(s) may be heavy. Take extra care when handling.

NOTE: This step requires the aid of another technician.

5.

Tailgate

Install and tighten the 5 bolts.

Torque: 60Nm

6.

NOTE: Apply Loctite 2040 to the threads.

Tailgate

7.

8.

9.

NOTE: Repeat the step for the other side.

Install the tailgate frame trim.

10. Install the rear window wiper motor.

11. Install the tailgate latch.

12. Install the tailgate window.

13. Connect the startup battery ground cable.
