Land Rover Defender: Oil Pump Drive Chain - Ingenium I4 2.0l Petrol
Land Rover Defender 2020-2026 Service Manual / Powertrain / Engine / Oil Pump Drive Chain - Ingenium I4 2.0l Petrol
REMOVAL AND INSTALLATION
SPECIAL TOOL(S)
.png)
205-053
Retainer, Differential Pinion Flange
PART(S)
.png)
REMOVAL
NOTES:
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- This procedure contains illustrations showing certain components removed to provide extra clarity.
1. Raise and support the vehicle on a suitable 2 post lift.
2. Disconnect the startup battery ground cable.
3. Remove the oil pan.
4.

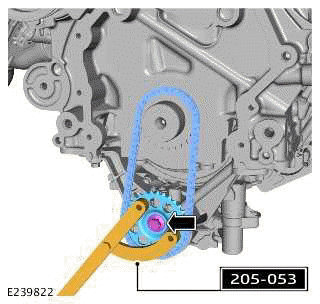

.png)
- Use the special tool to hold the oil pump drive sprocket.
Special Tool(s): 205-053
- Remove and discard the bolt.
- Remove the oil pump drive chain and sprocket.
INSTALLATION
1.
CAUTION: Make sure that the oil pump drive sprocket is aligned with the oil pump shaft correctly.
- Install the oil pump drive chain and sprocket.
- Use the special tool to hold the oil pump drive sprocket.
Special Tool(s): 205-053
- Install and tighten the new bolt.
Renew Part: Oil pump gear bolt Quantity: 1.
Torque
- Stage1: 60Nm
- Stage2: 90º
2. Install the oil pan.
3. Connect the startup battery ground cable.
