Land Rover Defender: Oil Filter Housing
REMOVAL AND INSTALLATION

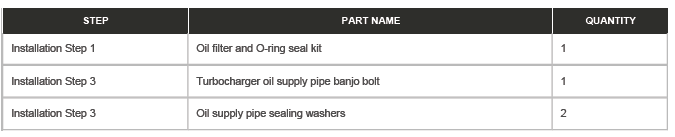

PART(S)
.png)
REMOVAL
WARNING:
The spilling of hot engine oil is unavoidable during this procedure, care must
be taken to prevent scalding.
NOTE:
- This procedure contains some variation in the illustrations depending
on the vehicle specification, but the
essential information is always correct.
- This procedure contains illustrations showing certain components
removed to provide extra clarity.
1. Remove the engine cover.
2. Remove the oil filter element.
3.
.png)

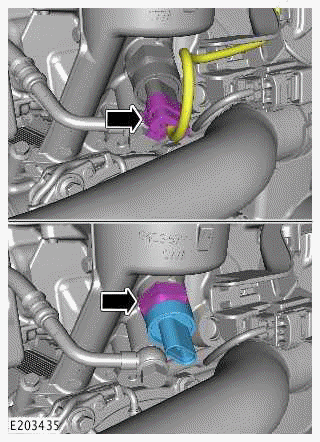

- Disconnect the electrical connector.
- Remove the oil pressure and temperature sensor.
4.
.png)

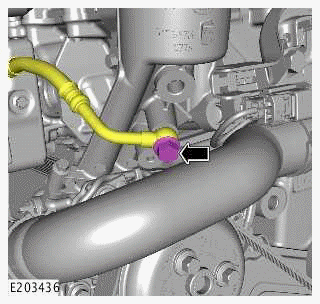

- Remove the bolt.
- Disconnect the oil pipe from the oil filter housing and discard the
sealing washers.
5.
.png)

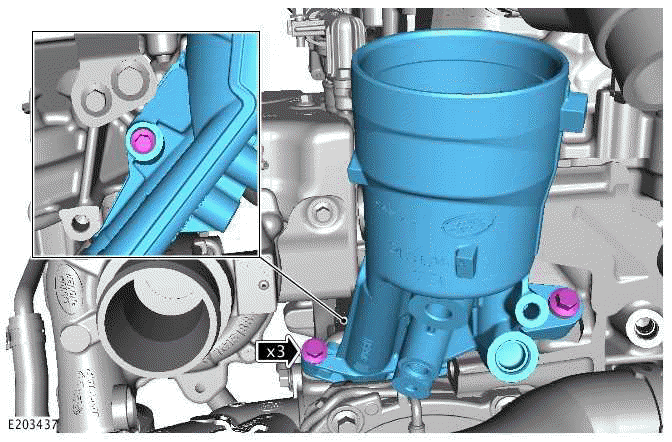

Remove the 3 bolts and the oil filter housing.
6.
.png)

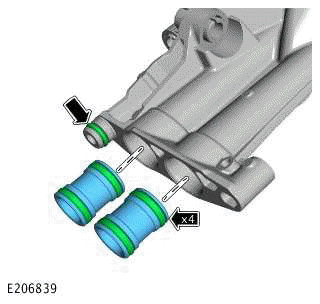

Remove and discard the 5 O-ring seals.
INSTALLATION
1. Install the 5 new O-ring seals.
2. Install the oil filter housing and the 3 bolts.
3.
4. Install the oil pressure and temperature sensor.
Torque: 15Nm
5. Install the oil filter element.
6. Install the engine cover.
