Land Rover Defender: Loadspace Retention Net

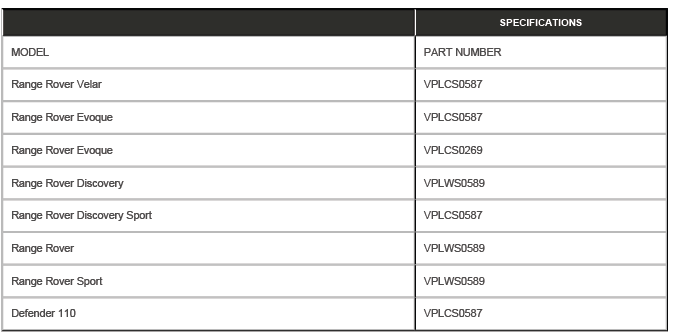

LOADSPACE RETENTION NET - PART NUMBER: VPLWS0589, VPLCS0587, VPLCS0269
REMOVAL AND INSTALLATION
WARNING: Accessories which are not correctly installed can be dangerous. Read the instructions carefully prior to installation. Comply with instructions at all times. If in doubt, contact your nearest approved retailer.
NOTE: This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.

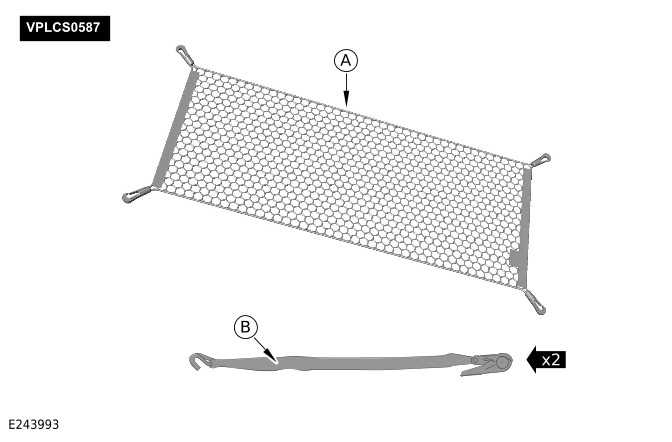

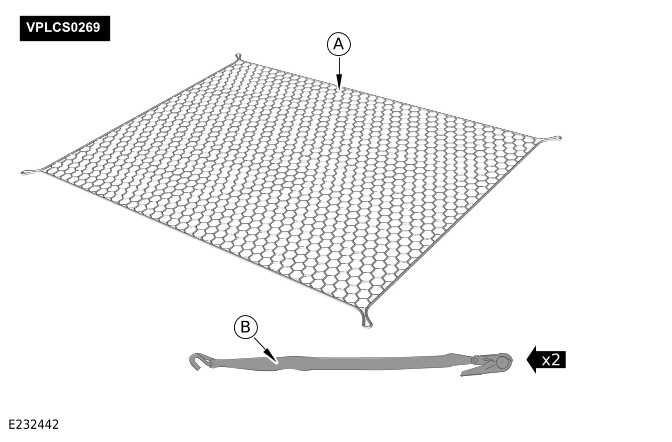

.png)
.png)
.png)
.png)
REMOVAL
1.
.png)

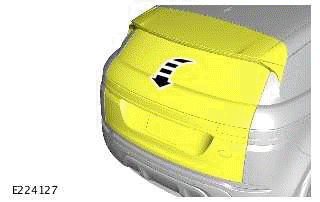

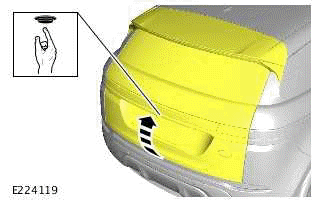

Open the tailgate.
2.
.png)

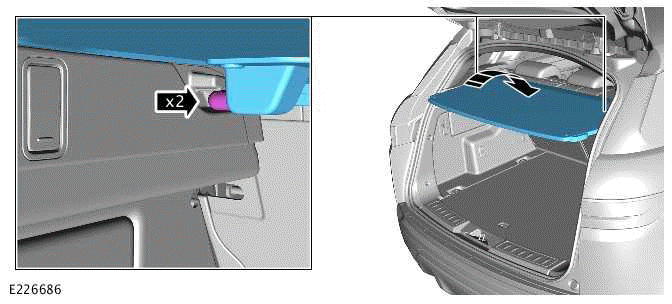

Remove the loadspace cover.
INSTALLATION
1.
.png)

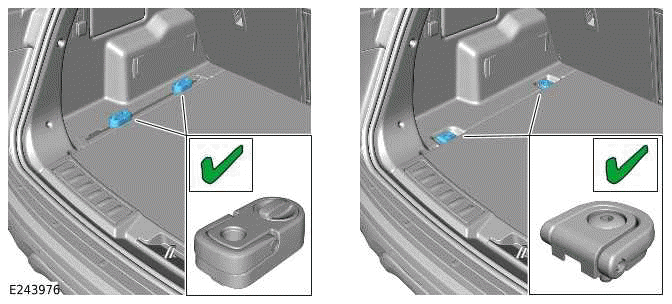

The loadspace retention net can be used if either the fixed D-loop anchor points or the sliding D-loop anchor points are installed.
2.
NOTE: Complete step if the sliding D-loop anchor points are installed.
.png)

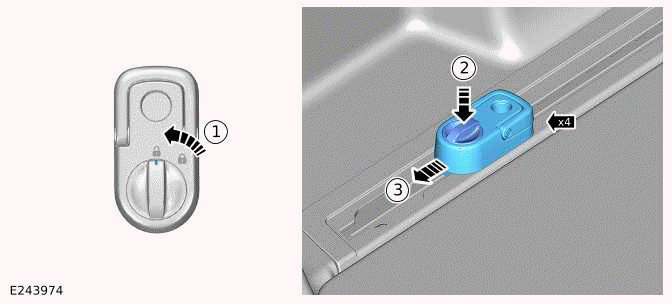

Move the 4 sliding D-loop anchor points to the ends of the loadspace rails.
3.
.png)

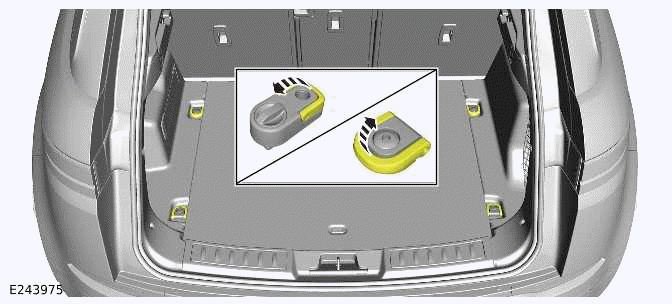

Raise the loop on each of the 4 D-loop anchor points.
4.
.png)

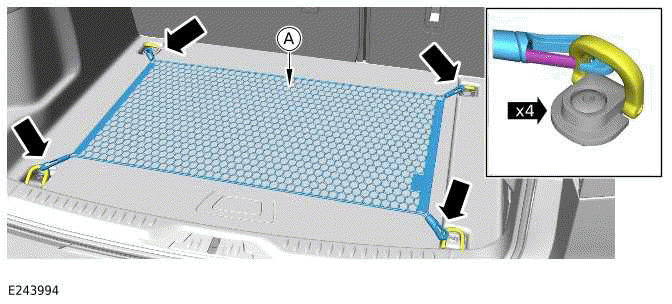

Install the loadspace retention net as illustrated.

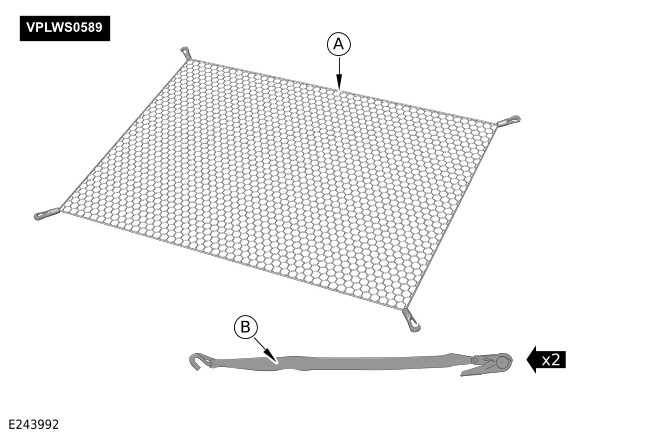

5. There are 2 ratchet straps (B) that can be used to secure loads. These should be used if the load is too large for the loadspace retention net.
6.
.png)

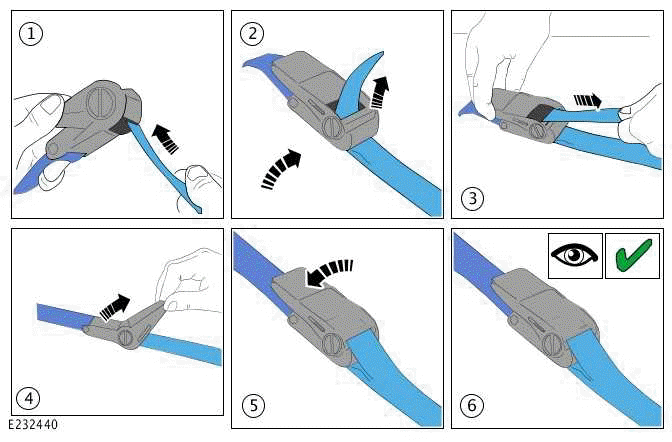

The ratchet straps should be tightened as illustrated.
7.
.png)

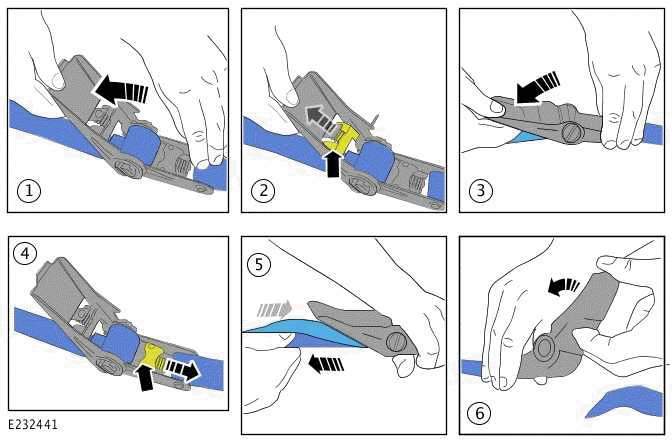

The ratchet straps should be released as illustrated.
8.
.png)

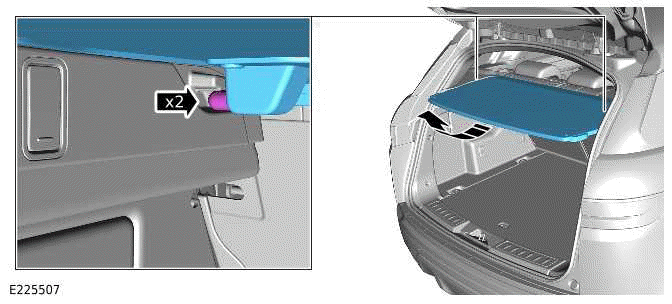

Install the loadspace cover if required.
9.
.png)
Close the tailgate.
