Land Rover Defender: Loadspace Collapsible Organizer
Land Rover Defender 2020-2025 Service Manual / General Information / Accessory Information / Loadspace Collapsible Organizer
LOADSPACE COLLAPSIBLE ORGANIZER - PART NUMBER: VPLVS0175
REMOVAL AND INSTALLATION
WARNING: Accessories which are not correctly installed can be dangerous. Read the instructions carefully prior to installation. Comply with instructions at all times. If in doubt, contact your nearest approved retailer.

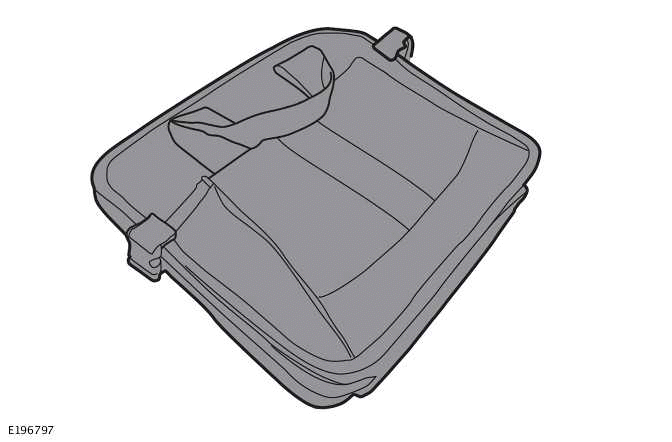

NOTE: This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
.png)
INSTALLATION
1.
.png)

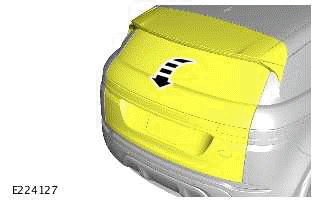

Open the tailgate.
2.
.png)

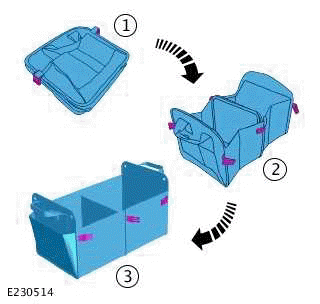

Expand the loadspace collapsible organizer.
3.
.png)

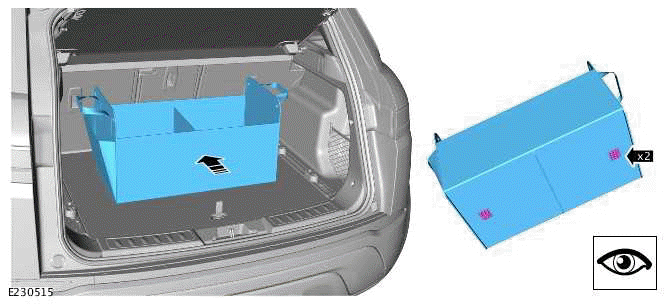

Install the loadspace collapsible organizer in the required position within the loadspace.
4.
.png)

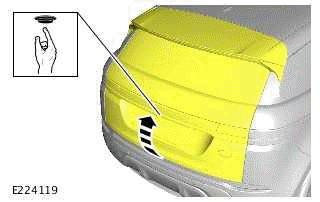

Close the tailgate.
