Land Rover Defender: Front Row Seat Head Restraint
Land Rover Defender 2020-2026 Service Manual / Body and Paint / Seating / Front Row Seat Head Restraint
REMOVAL AND INSTALLATION
REMOVAL
NOTE:
- This procedure contains illustrations showing certain components removed to provide extra clarity.
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- This procedure contains illustrations for the left side components, right side components are similar.
1. Remove the front row seat.
2.
.png)

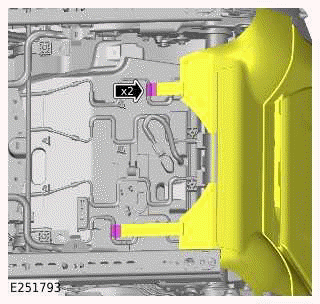

Release the 2 trim panel straps.
3.
.png)

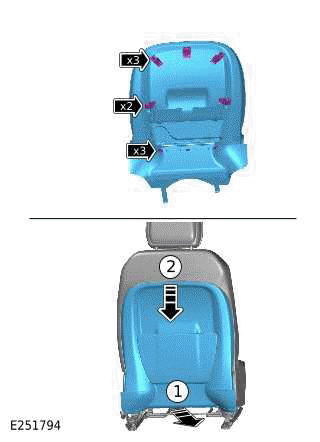

- Release the trim panel from the 8 clips.
- Remove the trim panel as illustrated.
4.
.png)

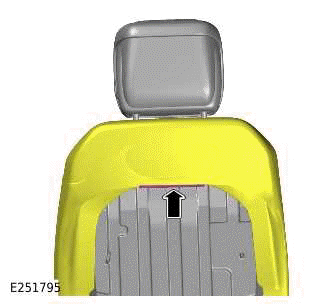

- Release the front row seat backrest cover upper clip.
- Reposition the backrest cover to access the head restraint bracket.
5.
.png)

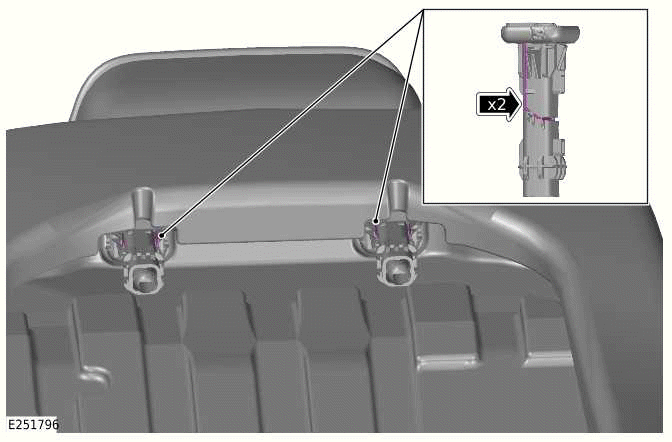

Release the 2 clips from the head restraint bracket.
6.
.png)

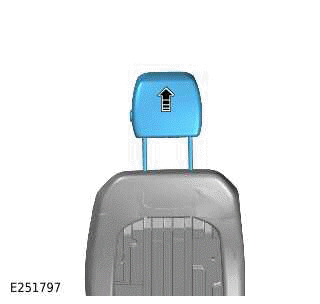

Remove the head restraint.
INSTALLATION
1.
NOTE: An audible click will be heard as each side of the headrest is installed to the correct location.
Install the head restraint.
2.
- Reposition the front row seat backrest cover to the correct location.
- Install the upper clip.
3.
- Install the trim panel.
- Install the 8 clips.
4. Install the trim panel straps.
5. Install the front row seat.
