Land Rover Defender: Left Upper Control Arm

REMOVAL AND INSTALLATION

SPECIAL TOOL(S)

Left Upper Control Arm

JLR-204-803

Splitter, Upper Arm

GENERAL EQUIPMENT

Left Upper Control Arm

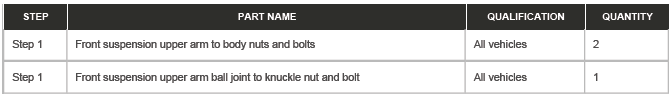

PART(S)

Left Upper Control Arm

REMOVAL

CAUTION: Nuts and bolts must be tightened with vehicle at normal ride height. Failure to follow this instruction may result in damage to the component.

NOTES:

The following step(s) applies to: Vehicles with air suspension

1.

Use the Jaguar Land Rover (JLR) approved diagnostic equipment, depressurize air suspension system.

General Equipment: Jaguar Land Rover approved diagnostic equipment

The following step(s) applies to: Vehicles with 2.0L diesel engine

2.

Remove the fuel filter.

The following step(s) applies to: All vehicles

3. Remove the air filter housing.

4. Raise and support the vehicle on a suitable 2-post lift.

5. Remove the left wheel and tire assembly.

6.

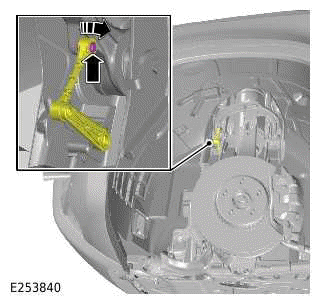

CAUTION: Do not use excessive force to release the height sensor.

Left Upper Control Arm

Release the height sensor from the left upper control arm.

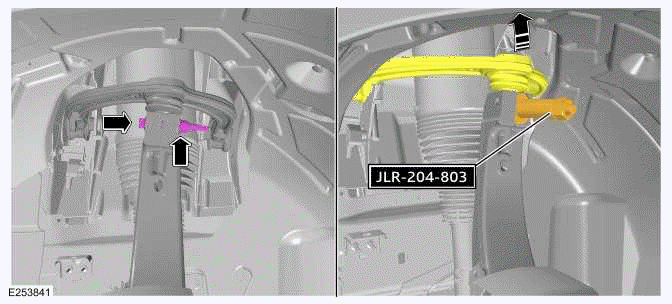

7.

Left Upper Control Arm

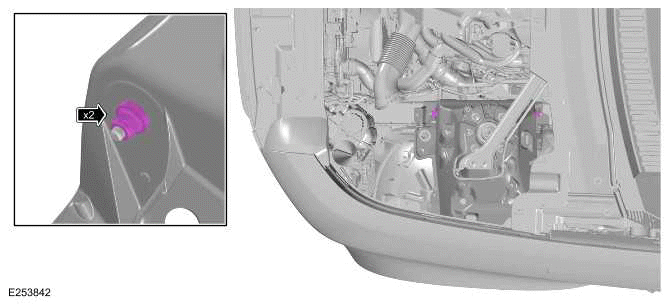

8.

Left Upper Control Arm

Remove the 2 nuts.

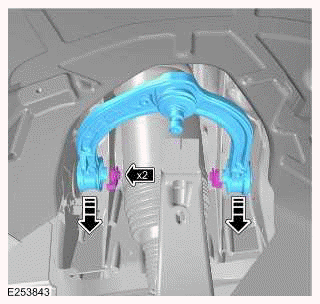

9.

Left Upper Control Arm

INSTALLATION

The following step(s) applies to: All vehicles

1.

2.

CAUTION: Nuts must be tightened with vehicle at normal ride height.

Install and tighten the 2 left upper control arm to body nuts.

Torque: 60Nm

3. Install the left wheel and tire assembly.

4. Install the air filter housing.

The following step(s) applies to: Vehicles with 2.0L diesel engine

5. Install the fuel filter.

The following step(s) applies to: Vehicles with air suspension

6. Use the JLR approved diagnostic system, to pressurize the air suspension.

General Equipment: Jaguar Land Rover approved diagnostic equipment

7. Use the JLR approved diagnostic system, to calibrate the suspension ride height.

General Equipment: Jaguar Land Rover approved diagnostic equipment
