Land Rover Defender: Roof Blind
REMOVAL AND INSTALLATION
GENERAL EQUIPMENT
.png)
REMOVAL
NOTES:
- This procedure contains some variation in the illustrations depending
on the vehicle specification, but the
essential information is always correct.
- This procedure contains illustrations showing certain components
removed to provide extra clarity.
1. Remove the headliner.
2.
NOTE:
If equipped.
.png)

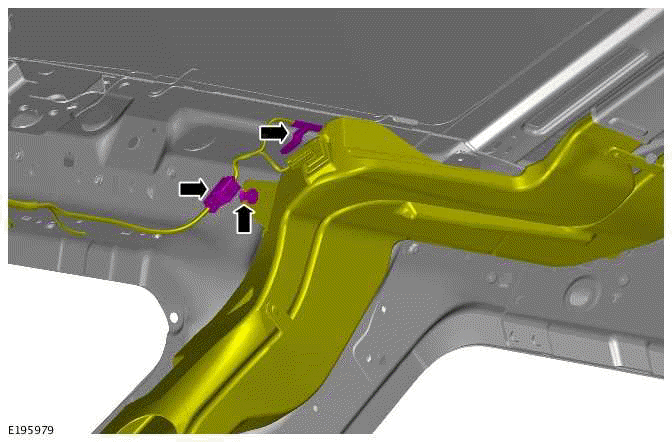

- Disconnect the in-vehicle temperature sensor electrical connector.
- Release the 2 retaining clips.
3.
NOTE:
If equipped.
.png)
- Release the 3 retaining clips.
- Remove the left air duct.
4.
NOTE:
If equipped.
.png)

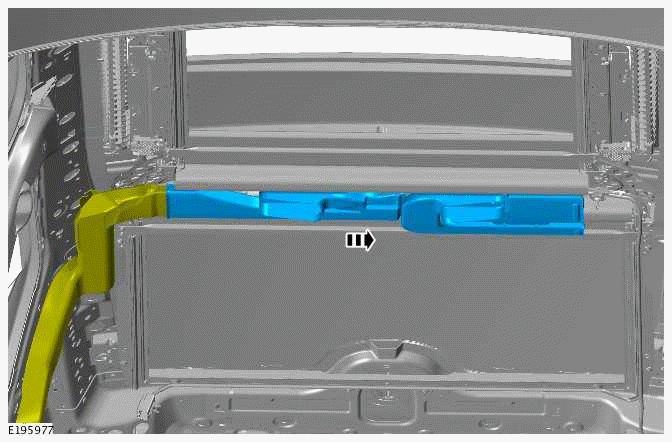

Remove the air duct.
5.
NOTE:
If equipped.
.png)

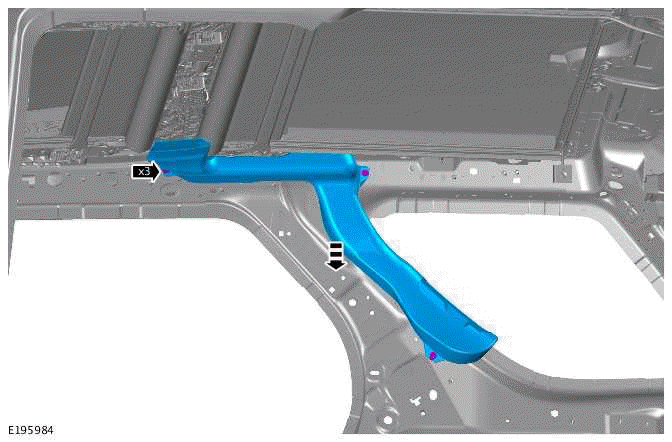

- Release the 3 retaining clips.
- Remove the right air duct.
6.
NOTE:
Using a suitable tool.
.png)

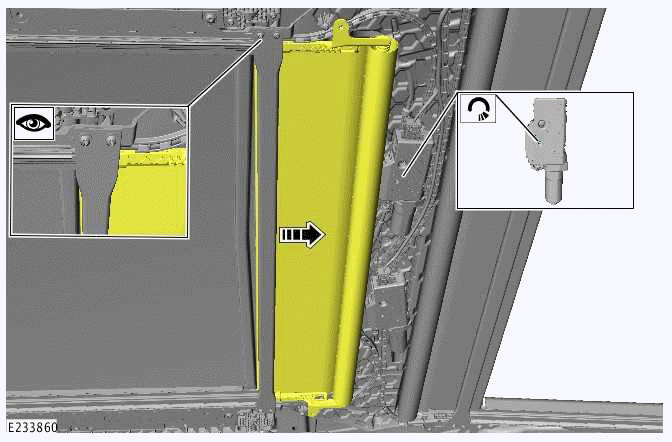

- Manually wind back the roof blind motor.
- Stop when the roof blind is located under the roof blind cross brace.

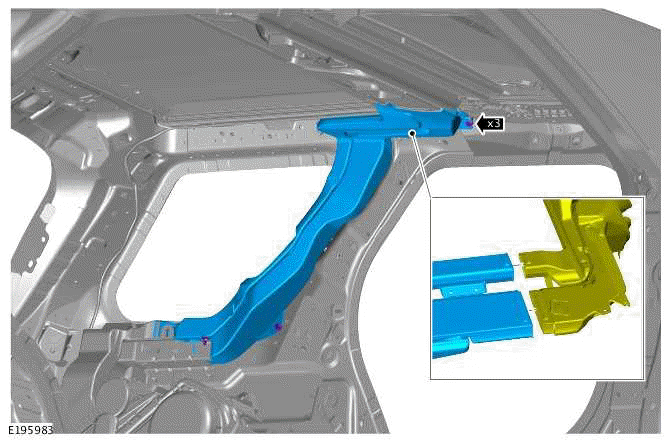

7.
.png)

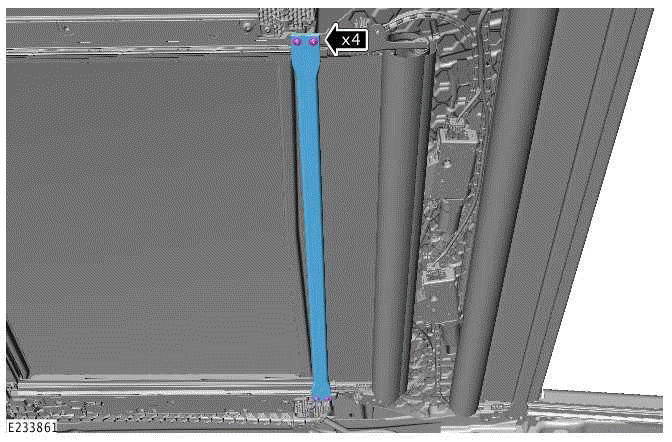

- Remove the 4 retaining bolts.
- Remove the roof blind cross brace.

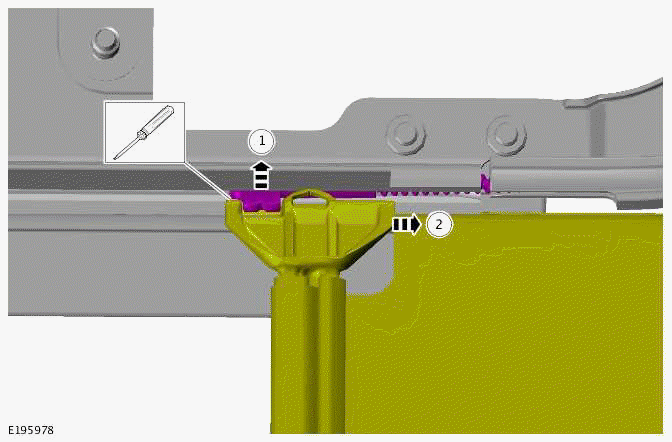

8.
NOTE:
This procedure must be completed on both sides.
.png)
Release the operating cable from the roof blind.
9.
.png)

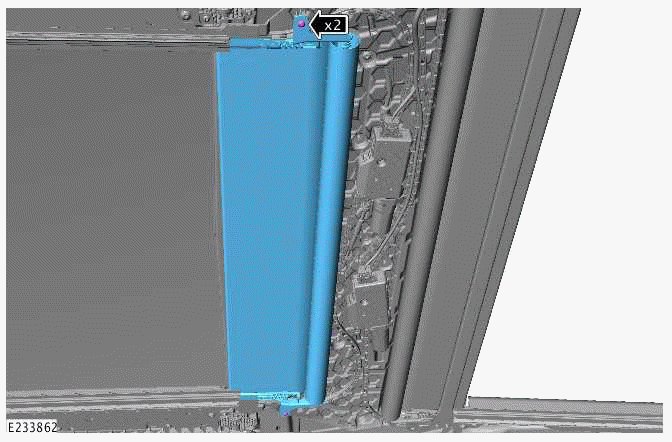

- Remove the 2 retaining screws.
- Remove the roof blind.
INSTALLATION
1.
NOTE:

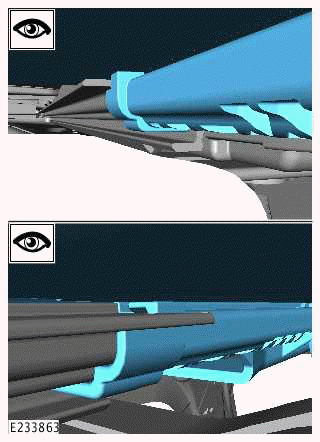

Make sure the roof blind is correctly installed as shown above.
.png)
Position the roof blind into the roof blind rail.
2.
NOTE:
Make sure the operating cable is correctly installed.
.png)
- Connect the operating cable to the roof blind.
- Install the roof blind and secure the 2 retaining screws.
Torque: 4Nm
3.
.png)
- Install the roof blind cross brace.
- Install the 4 retaining bolts.
Torque: 4Nm
4.
NOTE:
Using a suitable tool.
.png)

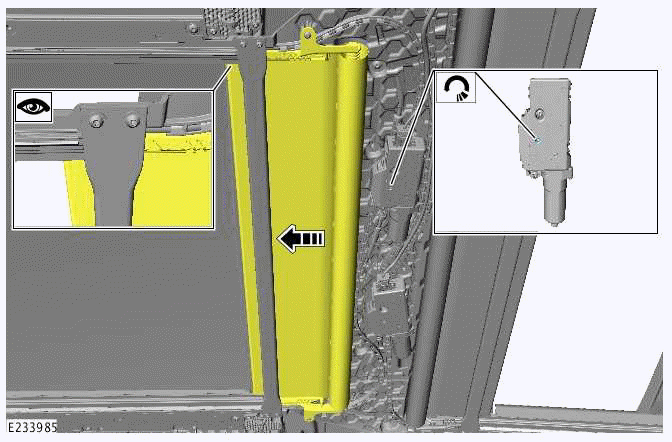

- Manually wind the roof blind motor.
- Stop when the roof blind has passed the roof cross bar.
5.
NOTE:
If equipped.
- Install the 3 air ducts.
- Install the 8 retaining clips.
- Connect the electrical connector.
6. Install the headliner.
7. Use the approved Jaguar Land Rover diagnostic equipment to configure the
roof blind.
General Equipment: Land Rover approved diagnostic tool
