REMOVAL AND INSTALLATION

GENERAL EQUIPMENT

Left Engine Mount - Ingenium I4 2.0l Petrol

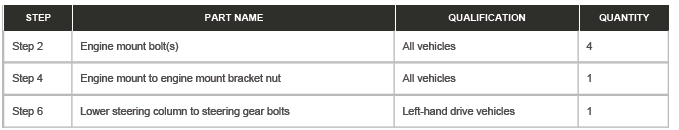

PART(S)

Left Engine Mount - Ingenium I4 2.0l Petrol

REMOVAL

NOTE:

The following step(s) applies to: All vehicles

1. Remove the charge air cooler outlet pipe.

2. Raise and support the vehicle on a suitable 2 post lift.

3. Remove the engine undershield.

The following step(s) applies to: Left-hand drive vehicles

4.

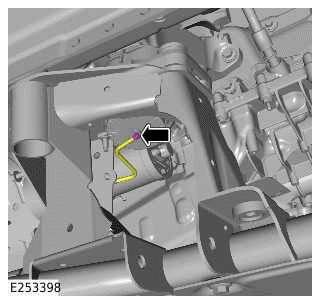

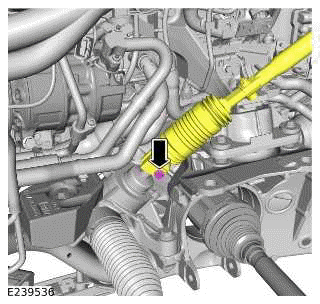

Left Engine Mount - Ingenium I4 2.0l Petrol

The following step(s) applies to: All vehicles

5.

Left Engine Mount - Ingenium I4 2.0l Petrol

Disconnect the vacuum pipe from the engine mount.

6.

Left Engine Mount - Ingenium I4 2.0l Petrol

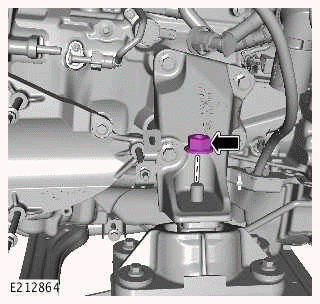

Remove and discard the engine mount to engine bracket nut.

7.

Left Engine Mount - Ingenium I4 2.0l Petrol

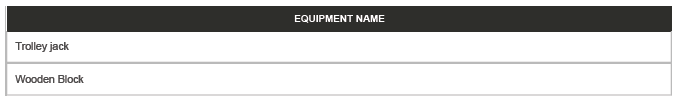

General Equipment: Trolley jack

General Equipment: Wooden Block

8.

Left Engine Mount - Ingenium I4 2.0l Petrol

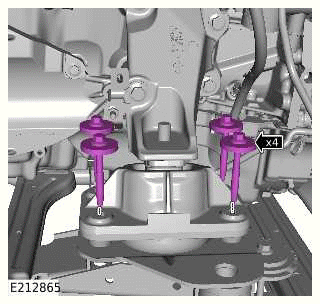

Remove and discard the 4 bolts.

9.

CAUTION: Care must be taken to avoid damaging the surrounding components.

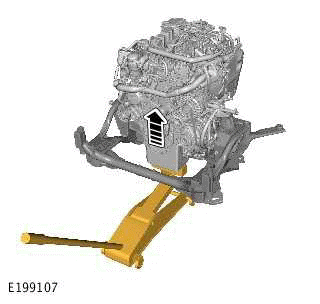

Raise the engine off the engine mount.

10.

Left Engine Mount - Ingenium I4 2.0l Petrol

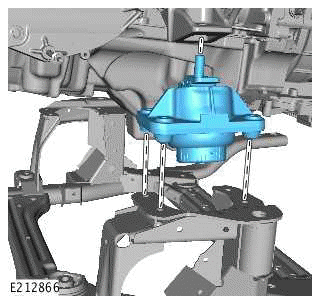

Remove the engine mount.

INSTALLATION

The following step(s) applies to: All vehicles

1. Install the engine mount.

2.

3.

4.

5. Connect the vacuum pipe to the engine mount.

The following step(s) applies to: Left-hand drive vehicles

6.

The following step(s) applies to: All vehicles

7. Install the engine undershield.

8. Install the charge air cooler outlet pipe.
