Land Rover Defender: Integrated Control Panel
Land Rover Defender 2020-2024 Service Manual / Electrical / Climate Control System / Climate Control / Integrated Control Panel
REMOVAL AND INSTALLATION
REMOVAL
NOTES:
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- This procedure contains illustrations showing certain components removed to provide extra clarity.
1. Disconnect the startup battery ground cable.
2.

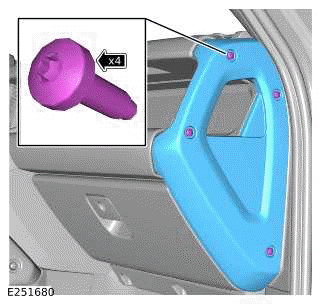

.png)
- Remove the 4 bolts.
- Remove the instrument panel passenger side trim.
3.
CAUTION: Take extra care not to damage the component.

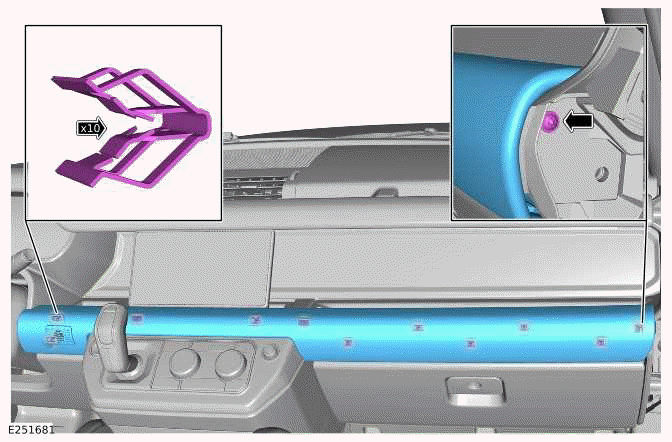

.png)
- Remove the bolt.
- Remove the instrument panel lower surround trim at the 10 clips.
4.
CAUTION: Take extra care not to damage the component.

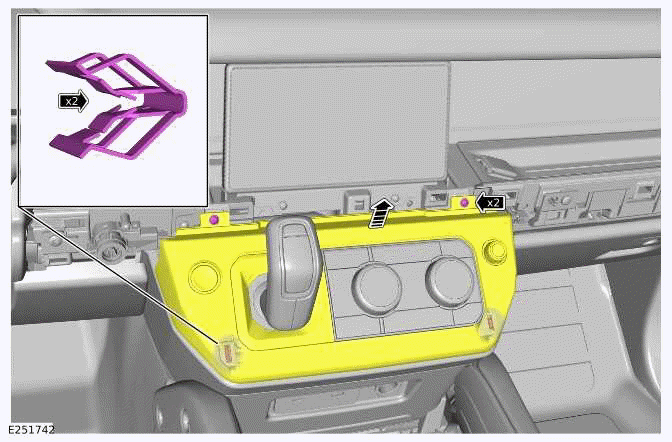

.png)
- Remove the 2 screws.
- Release the trim panel at the 2 clips.
5.

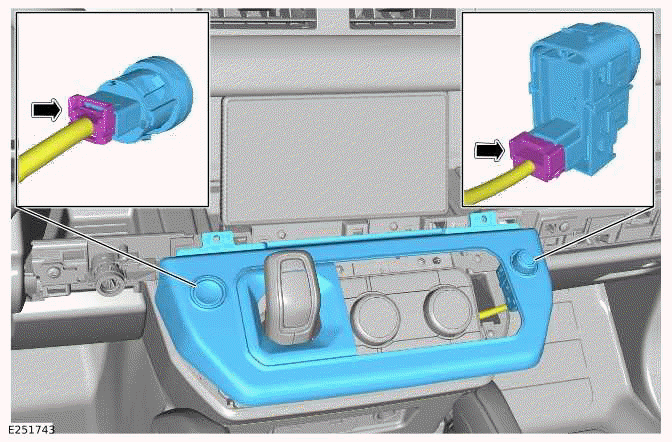

.png)
- Disconnect the 2 electrical connectors from the 2 switches.
- Remove the trim panel.
6.

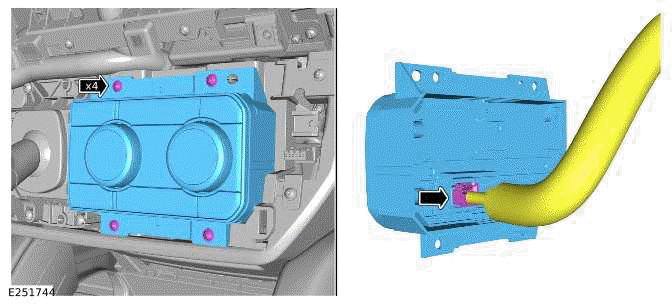

.png)
- Remove the 4 screws.
- Disconnect the electrical connector from the Integrated Control Panel (ICP).
- Remove the ICP.
INSTALLATION
1.
- Connect the electrical connector to the Integrated Control Panel (ICP).
- Install the ICP.
- Install and tighten the 4 screws.
Torque: 1.7Nm
2.
- Connect the 2 electrical connectors to the 2 switches.
- Install the trim panel at the 2 clips.
- Install and tighten the 2 screws.
Torque: 0.6Nm
3.
- Install the instrument panel lower surround trim to the 10 clips.
- Install and tighten the bolt.
Torque: 1.7Nm
4.
- Install the instrument panel passenger side trim.
- Install and tighten the 4 bolts.
Torque: 2.5Nm
5. Connect the startup battery ground cable.
