Land Rover Defender: Instrument Panel Wiring Harness
Land Rover Defender 2020-2025 Service Manual / Electrical / Electrical Distribution / Wiring Harnesses / Instrument Panel Wiring Harness
REMOVAL AND INSTALLATION
REMOVAL
NOTES:
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- This procedure contains illustrations showing certain components removed to provide extra clarity.
1. Disconnect the startup battery ground cable.
2. Remove the instrument panel cross-car beam.

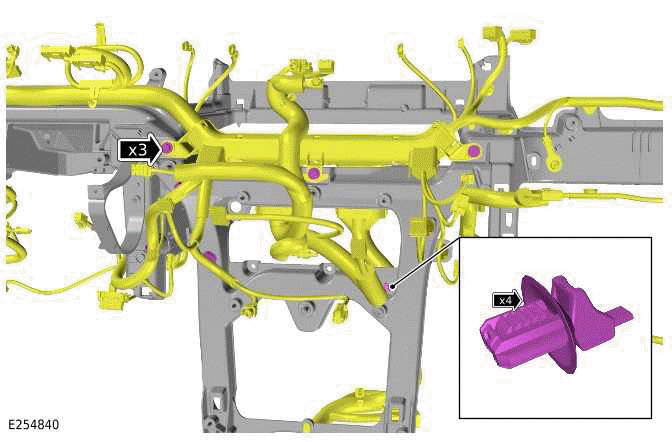

3.
.png)
- Disconnect the 3 electrical connectors.
- Release the 2 wiring harness clips.

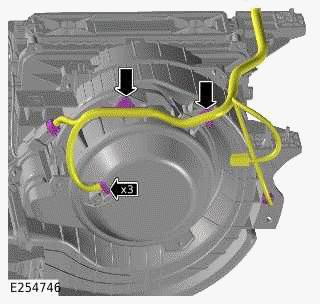

4.
.png)
Release the 2 wiring harness clips.

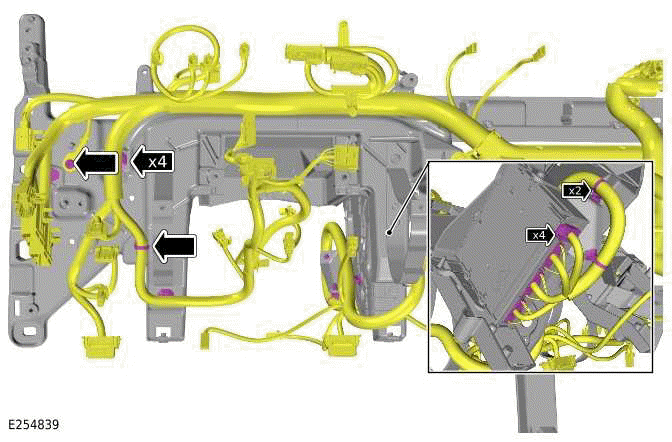

5.
.png)
- Remove the 2 ground bolts.
- Release the 13 wiring harness clips.

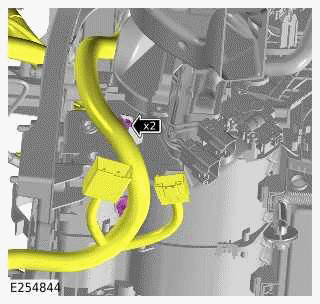

6.
.png)
- Remove the ground bolt.
- Disconnect the 4 electrical connectors.
- Release the 7 wiring harness clips.

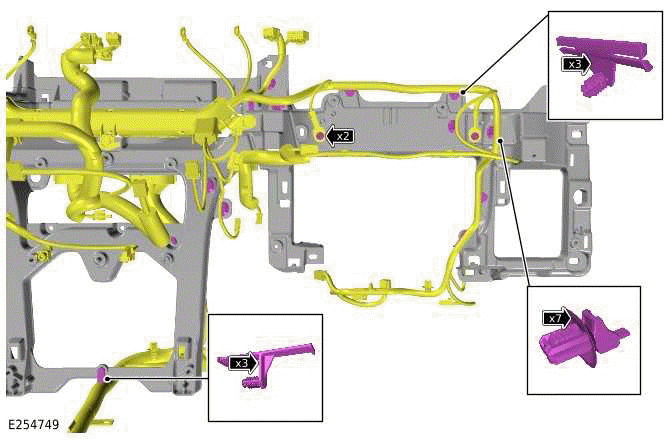

7.
.png)
- Remove the 3 bolts.
- Release the 4 wiring harness clips.

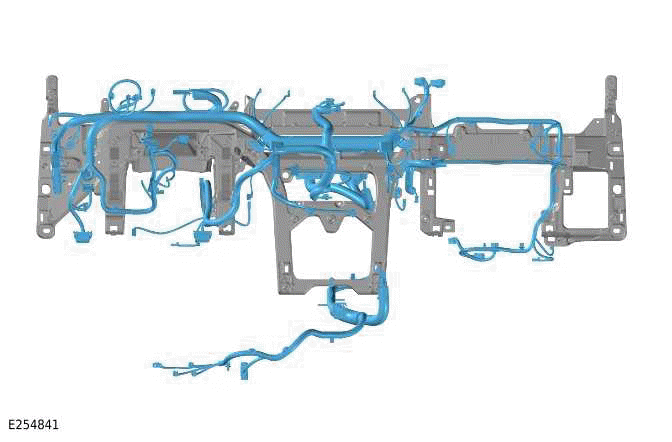

8.
.png)
Remove the instrument panel wiring harness.
INSTALLATION
1.
NOTE: Make sure that all the clips are correctly installed.
- Install the instrument panel wiring harness.
- Install and tighten the 3 bolts.
Torque: 9Nm
- Install and tighten the 3 ground bolts.
Torque: 12Nm
- Connect the 7 electrical connectors.
- Install the 28 wiring harness clips.
2. Install the instrument panel cross-car beam.
3. Connect the startup battery ground cable.
