Land Rover Defender: Instrument Cluster Lens
Land Rover Defender 2020-2026 Service Manual / Electrical / Instrumentation and Warning Systems / Instrument Cluster / Instrument Cluster Lens
REMOVAL AND INSTALLATION
REMOVAL
NOTES:
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- This procedure contains illustrations showing certain components removed to provide extra clarity.
1. Disconnect the startup battery ground cable.
2. Remove the Instrument Cluster (IC).
3.
.png)

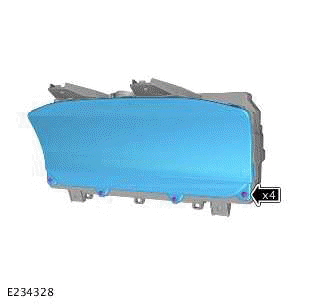

Remove the 4 screws.
4.
CAUTIONS:
- Use a suitable plastic trim tool to release the component.
- Take extra care not to damage the component.
.png)

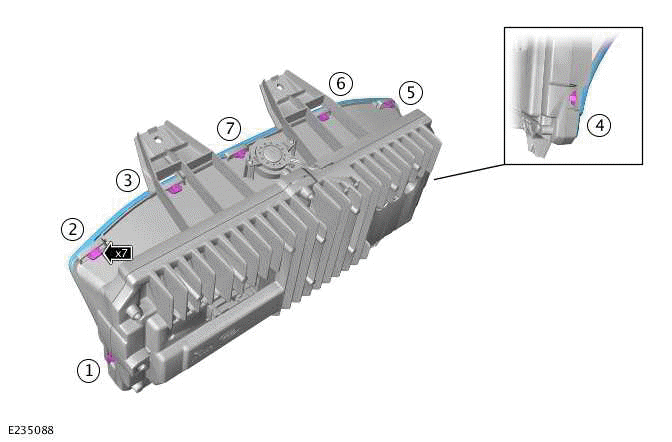

Release the 7 clips in the sequence shown and remove the IC lens.
INSTALLATION
1.
CAUTION: Take extra care not to damage the component.
.png)
- Install the Instrument Cluster (IC) lens to the 7 clips in the sequence shown.
- Install and tighten the 4 screws.
Torque: 2Nm
2. Install the IC.
3. Connect the startup battery ground cable.
