Land Rover Defender: Horn
SPECIFICATIONS
Torque Specifications

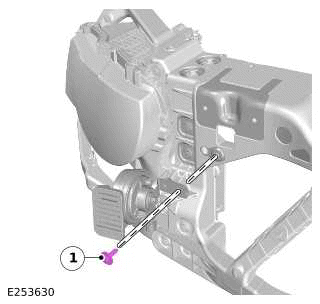

COMPONENT TORQUE LOCATION
.png)
.png)
REMOVAL AND INSTALLATION
REMOVAL
NOTES:
- This procedure contains some variation in the illustrations depending
on the vehicle specification, but the
essential information is always correct.
- This procedure contains illustrations showing certain components
removed to provide extra clarity.
- This procedure contains illustrations for right side components, left
side components are similar.
1. Disconnect the startup battery ground cable.
2. Remove the radiator grille.
3.

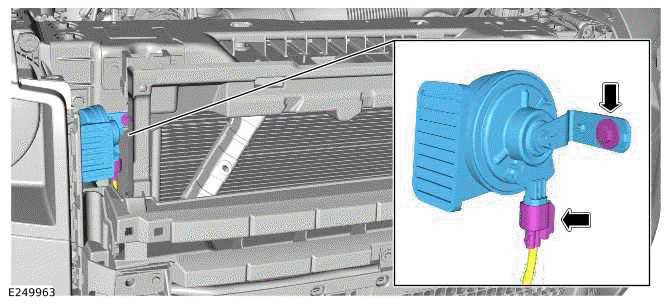

.png)
- Disconnect the electrical connector.
- Remove the bolt.
- Remove the horn assembly.
INSTALLATION
1.
2. Install the radiator grille.
3. Connect the startup battery ground cable.
