Land Rover Defender: High Mounted Stop Lamp Filter
Land Rover Defender 2020-2026 Service Manual / Electrical / Information and Entertainment System / High Mounted Stop Lamp Filter
REMOVAL AND INSTALLATION
REMOVAL
NOTE:
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- This procedure contains illustrations showing certain components removed to provide extra clarity.
1. Remove the headliner.

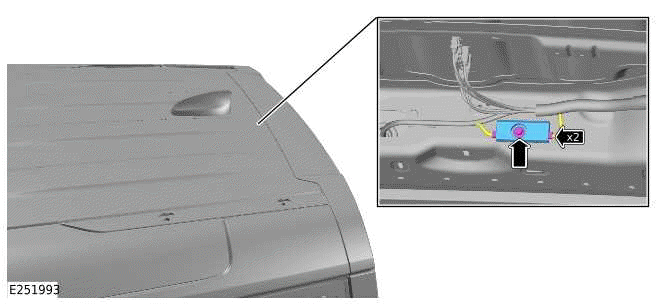

2.
.png)
- Disconnect the 2 electrical connectors.
- Remove the bolt.
- Remove the High Mounted Stop Lamp (HMSL) filter.
INSTALLATION
1.
- Install the High Mounted Stop Lamp (HMSL) filter.
- Connect the 2 electrical connectors to the HMSL filter.
- Install and tighten the bolt.
Torque: 9Nm
2. Install the headliner.
