Land Rover Defender: Bluetooth Antenna - Left Hand Drive

Land Rover Defender 2020-2026 Service Manual / Electrical / Information and Entertainment System / Bluetooth Antenna - Left Hand Drive

REMOVAL AND INSTALLATION

REMOVAL

CAUTION: Do not use excessive force to remove the component. Make sure that all fixings are fully released.

NOTE:

This procedure contains illustrations showing certain components removed to provide extra clarity.
This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
Make sure that the retaining clips are correctly installed.

1. Disconnect the startup battery ground cable.

2. Remove the instrument panel lower trim.

Bluetooth Antenna - Left Hand Drive

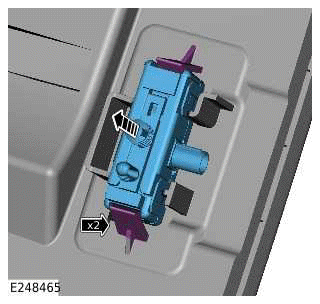

Release the 2 clips.
Remove the Bluetooth antenna.

INSTALLATION

1. Install the Bluetooth antenna.

2. Install the instrument panel lower trim.

3. Connect the startup battery ground cable.
