Land Rover Defender: Front Door Window
Land Rover Defender 2020-2026 Service Manual / Body and Paint / Glass, Frames and Mechanisms / Front Door Window
REMOVAL AND INSTALLATION
SPECIAL TOOL(S)
.png)
501-114
Release Lever, Door Glass
REMOVAL
CAUTIONS:
- Lay the window on felt covered supports. Do not stand on edge as this can cause chips which subsequently develop into cracks.
- Protect the surrounding paintwork to avoid damage.
NOTES:
- This procedure contains illustrations for left side components, right side components are similar.
- This procedure contains illustrations showing certain components removed to provide extra clarity.
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.

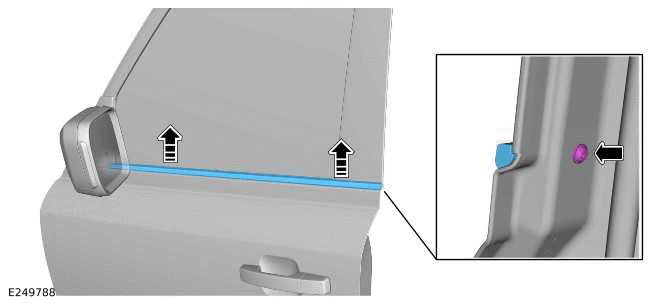

1.
.png)
- Remove the screw.
- Remove the front door outer weatherstrip.

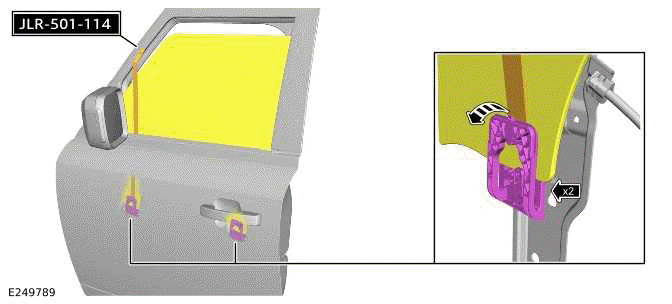

2.
.png)
- Lower the front door window.
- Use the special tool to release the front door window from the regulator
assembly.
Special Tool(s): 501-114

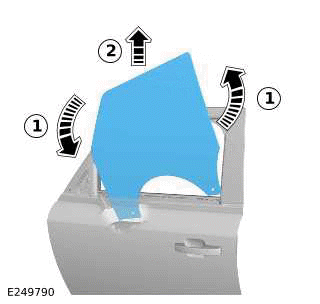

3.
.png)
Remove the front door window.
INSTALLATION
1. Install the front door window.
2.

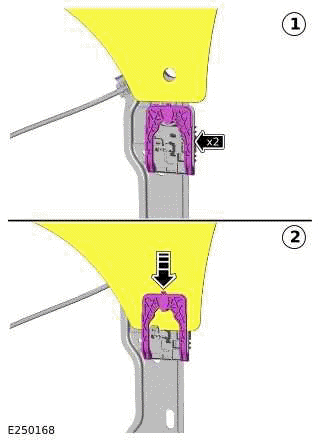

CAUTION: Make sure that 2 audible clicks are heard when the clips are fully located.
.png)
Connect the front door window to the regulator assembly.
3.
- Install the front door outer weatherstrip.
- Install and tighten the screw.
4. Initialize the front door window motor.
