Land Rover Defender: Heater Core
Land Rover Defender 2020-2026 Service Manual / Electrical / Climate Control System / Climate Control / Heater Core
REMOVAL AND INSTALLATION
PART(S)
.png)
REMOVAL
NOTE:
- This procedure contains illustrations showing certain components removed to provide extra clarity.
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
1. Remove the climate control assembly.

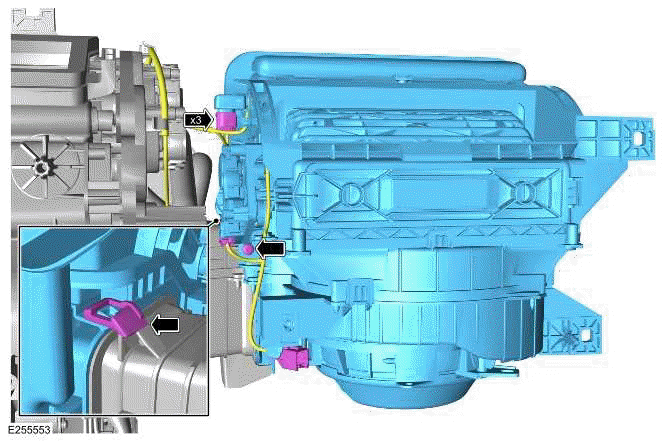

2.
.png)
- Disconnect the 3 electrical connectors.
- Release the wiring harness.
- Remove the screw.
- Remove the blower housing.

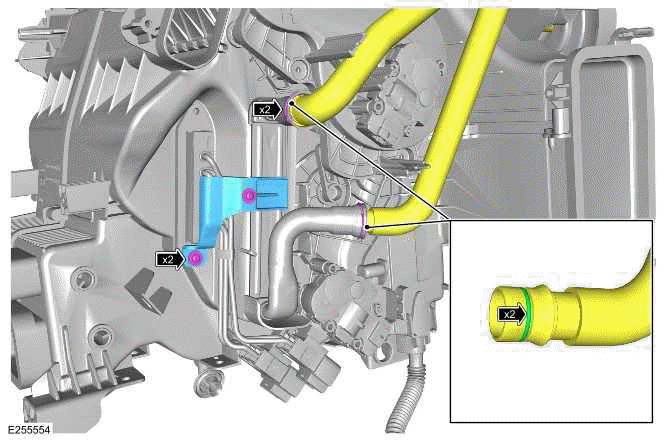

3.
.png)
- Remove the 2 screws.
- Remove the bracket.
- Remove the 2 clips.
- Release the 2 coolant pipes.
- Discard the 2 O-ring seals.

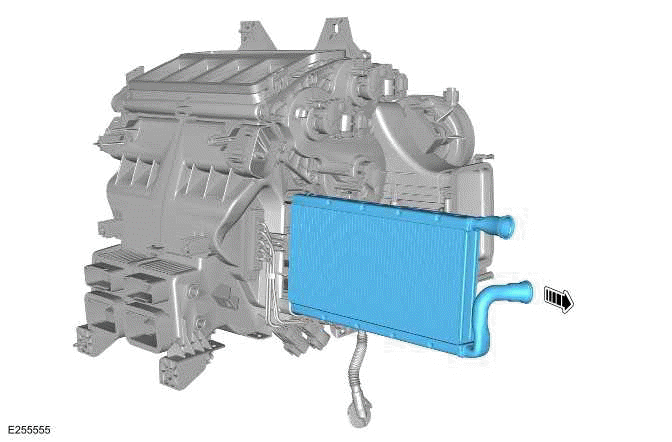

4.
.png)
Remove the heater core.
INSTALLATION
1. Install the heater core.
2.
- Install 2 new O-ring seals.
Renew Part: Heater core pipe O-ring seal(s) Quantity: 2.
- Install the 2 coolant pipes.
- Secure the 2 clips.
- Install the bracket.
- Install and tighten the 2 screws Torque: 1.2Nm
3.
- Install the blower housing.
- Install and tighten the screw.
Torque: 1.2Nm
- Install the wiring harness.
- Connect the 3 electrical connectors.
4. Install the climate control assembly.
