Land Rover Defender: GNSS Signal Splitter Assembly
REMOVAL AND INSTALLATION
REMOVAL
NOTE:
- This procedure contains some variation in the illustrations depending
on the vehicle specification, but the
essential information is always correct.
- This procedure contains illustrations showing certain components
removed to provide extra clarity.
1. Remove the left loadspace trim panel.
2.
.png)

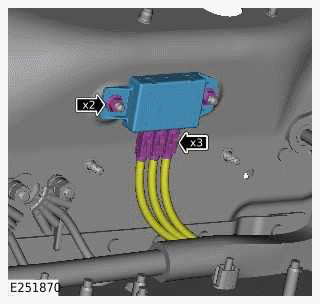

- Disconnect the 3 electrical connectors.
- Remove the 2 nuts.
- Remove the Global Navigation Satellite System (GNSS) signal splitter.
INSTALLATION
1.
- Install the Global Navigation Satellite System (GNSS) signal splitter.
- Install and tighten the 2 nuts.
Torque: 5Nm
- Connect the 3 electrical connectors to the GNSS signal splitter.
2. Install the left loadspace trim panel.
