Land Rover Defender: Spare Wheel Cover

SPARE WHEEL COVER - PART NUMBER: VPLEW0130

REMOVAL AND INSTALLATION

VPLEW0130 / VPLEW0143

WARNING: Accessories which are not correctly installed can be dangerous. Read the instructions carefully prior to installation. Comply with instructions at all times. If in doubt, contact your nearest approved retailer.

CAUTIONS:

NOTE: This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.

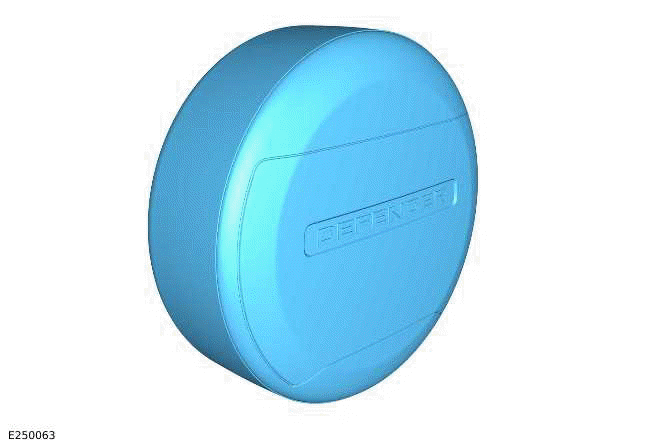

Spare Wheel Cover

INSTALLATION

1.

Spare Wheel Cover

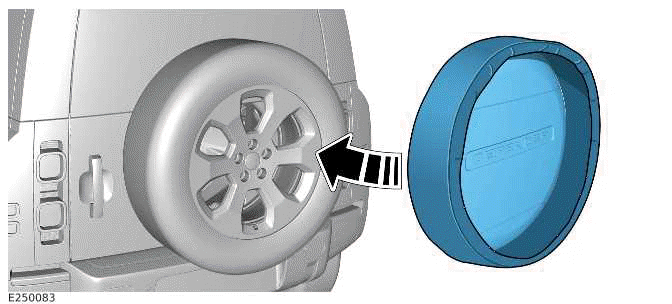

Observing the spare wheel cover orientation, offer up the spare wheel cover to the spare wheel.

2.

Spare Wheel Cover

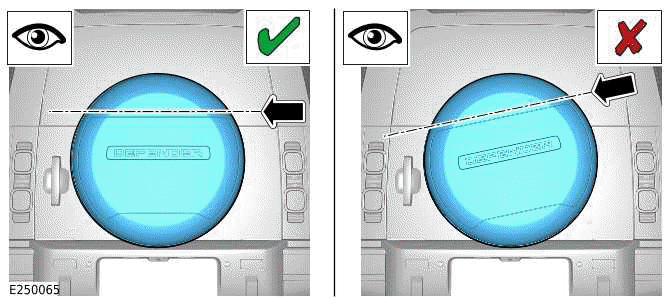

Make sure the spare wheel cover is lined up correctly before installing, as illustrated.

3.

Spare Wheel Cover

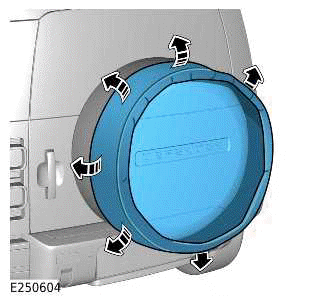

Pull the outer cover over the spare wheel.

4.

Spare Wheel Cover

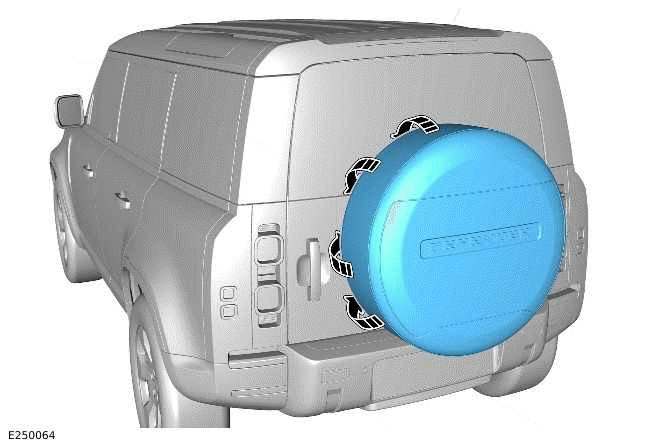

Make sure the spare wheel cover is securely installed over the rear of the spare wheel and the outer cover is firmly tucked behind the spare wheel.

REMOVAL

1. Remove the part of the outer cover that is tucked behind the spare wheel.

2. Pull the spare wheel cover away from the spare wheel.
