Land Rover Defender: Generator and Regulator - Ingenium I4 2.0l Petrol
Land Rover Defender 2020-2026 Service Manual / Electrical / Battery and Charging System / Generator and Regulator - Ingenium I4 2.0l Petrol
SPECIFICATIONS

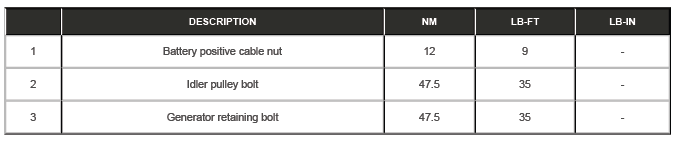

Torque Specifications

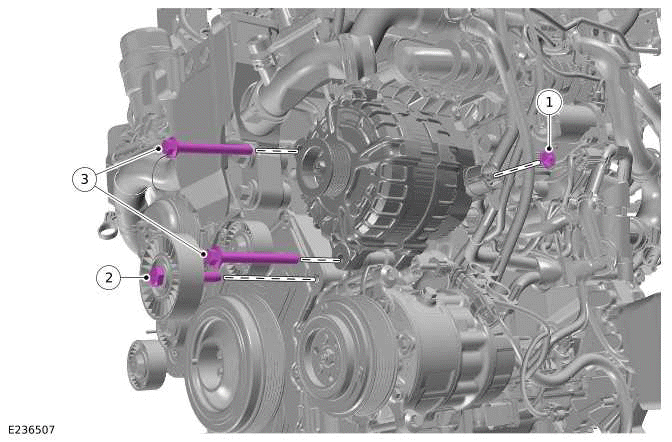

COMPONENT TORQUE LOCATION
.png)
.png)
READ NEXT:
Generator - Description and Operation
DESCRIPTION AND OPERATION
COMPONENT LOCATION
COMPONENT LOCATION - 1 OF 1
Generator
Electrical connector - Body Control Module/Gateway Module (BCM/GWM)
Electrical connector - Startup battery Posit
Generator - Removal and Installation
REMOVAL AND INSTALLATION
REMOVAL
NOTES:
This procedure contains some variation in the illustrations depending
on the vehicle specification, but the
essential information is always correct.
This
