Land Rover Defender: Front Wheel Bearing and Wheel Hub Runout Check
GENERAL PROCEDURE
ACTIVATION
NOTE:
Some variation in the illustrations may occur, but the essential information is
always correct.
1. Raise and support the vehicle on a suitable 2 post lift.
2. Remove the front brake disc.
3.
.png)

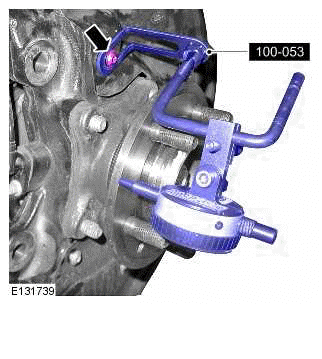

Using special tool (100-053) mount a Dial Test Indicator (DTI) to and secure
to the backplate using the
upper backplate fixing.
4.
CAUTION:
Make sure the DTI is positioned clear of the wheel studs.
Position the DTI probe on the outer edge of the hub face.
5. If the hub runout exceeds the limit replace the hub.
6. Remove the DTI.
7. Install the fcront brake disc.
