Land Rover Defender: Second Row Left Seat - 110

REMOVAL AND INSTALLATION

REMOVAL

WARNINGS:

NOTES:

1. Disconnect the startup battery ground cable.

2. Make the Supplementary Restraint System (SRS) safe.

3.

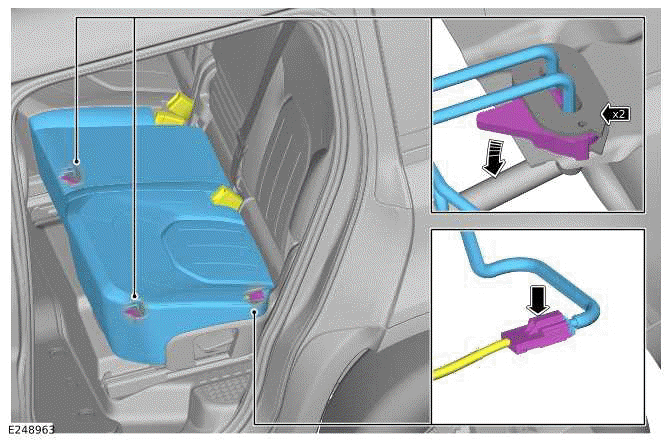

Second Row Left Seat - 110

4.

Second Row Left Seat - 110

5.

Second Row Left Seat - 110

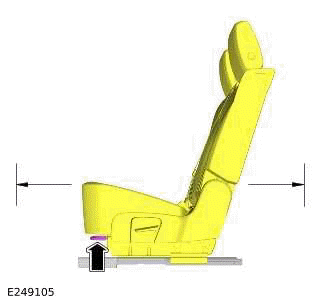

Position the second row seat backward.

6.

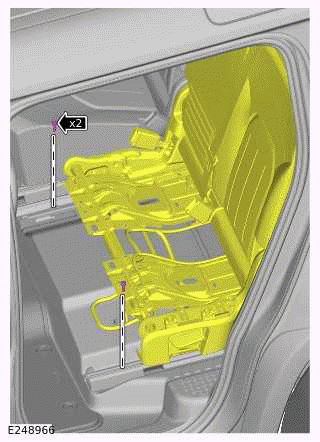

Second Row Left Seat - 110

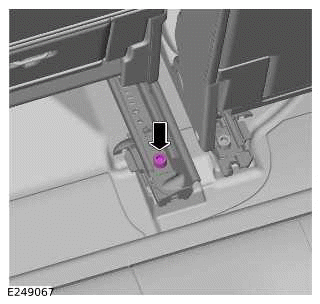

Remove the 2 front seat track bolts.

7.

Second Row Left Seat - 110

Position the second row seat forward.

8.

Second Row Left Seat - 110

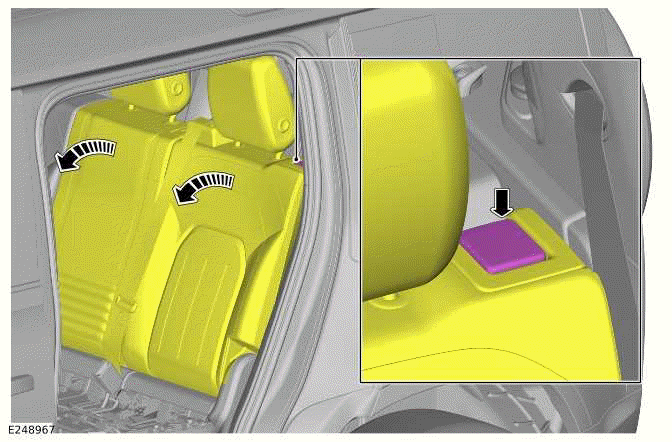

Fold the second row seat backrest.

9.

Second Row Left Seat - 110

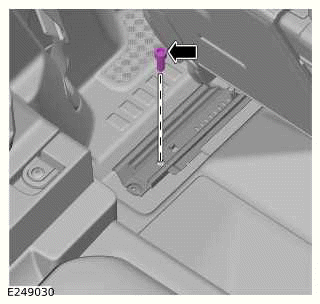

Remove the rear seat track bolt.

10.

CAUTION: Take extra care not to damage the component.

Second Row Left Seat - 110

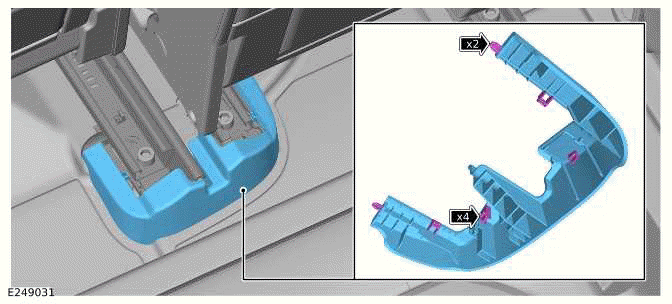

Remove the seat track trim.

11.

Second Row Left Seat - 110

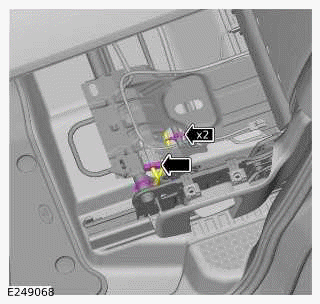

Remove the rear seat track bolt.

12.

Second Row Left Seat - 110

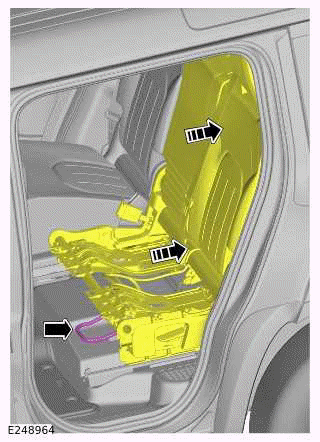

Reposition the second row seat to the center position.

13.

WARNING: This step requires the aid of another technician.

CAUTIONS:

Second Row Left Seat - 110

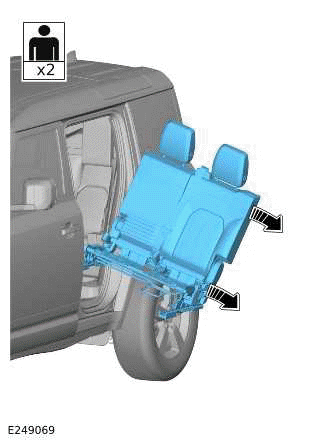

Remove the left second row seat assembly.

INSTALLATION

1.

WARNING: This step requires the aid of another technician.

CAUTIONS:

Install the second row seat assembly.

2. Position the second row seat forward.

3. Install and tighten the 2 rear seat track bolts.

Torque: 50Nm

4. Install the rear seat track trim.

5. Position the second row seat backward.

6. Install and tighten the 2 front seat track bolts.

Torque: 50Nm

7. Reposition the second row seat to the center position.

8. Fold the second row seat backrest.

9.

10.

11. Connect the startup battery ground cable.
