Land Rover Defender: Front Infotainment Control Module
REMOVAL AND INSTALLATION
GENERAL EQUIPMENT
.png)
REMOVAL
NOTE:
- This procedure contains some variation in the illustrations depending
on the vehicle specification, but the
essential information is always correct.
- This procedure contains illustrations showing certain components
removed to provide extra clarity.
1. Remove the front row left seat.
2.
.png)

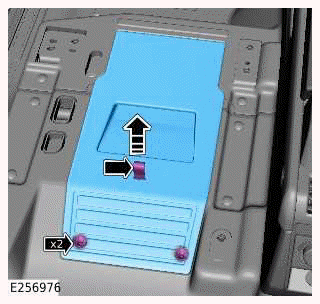

- Release the 2 clips.
- Remove the access cover.
3.
.png)

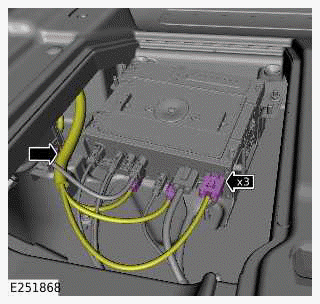

- Disconnect the 3 electrical connectors.
- Release the wiring harness clip.
4.
.png)

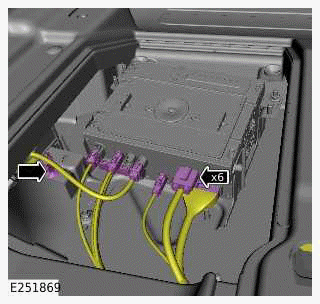

- Disconnect the 6 electrical connectors.
- Release the wiring harness clip.
5.
.png)

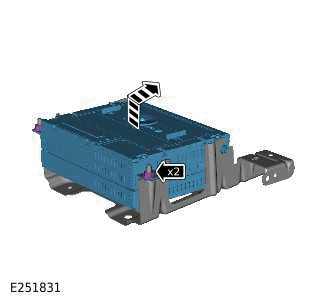

- Remove the 2 nuts.
- Remove the Front Infotainment Control Module (IGM / ICCM) from the
mounting bracket.
INSTALLATION
1.
- Install the IGM / ICCM to the mounting bracket.
- Install and tighten the 2 nuts.
Torque: 5.4Nm
2.
- Connect the 9 electrical connectors to the IGM / ICCM.
- Install the 2 wiring harness clips.
3. Install the access cover.
4. Install the front row left seat.
5.
NOTES :
- This step is only required if a new component is installed.
- SRO to be claimed separately.
