Land Rover Defender: Front Door Lower Moulding

Land Rover Defender 2020-2025 Service Manual / Body and Paint / Exterior Trim and Ornamentation / Front Door Lower Moulding

REMOVAL AND INSTALLATION

REMOVAL

CAUTION: Protect the surrounding paintwork to avoid damage.

NOTES:

1.

Front Door Lower Moulding

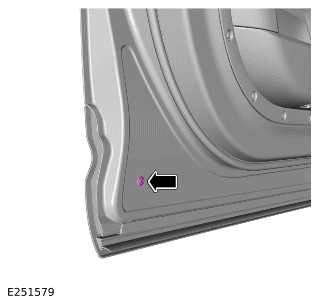

Remove the screw.

2.

Front Door Lower Moulding

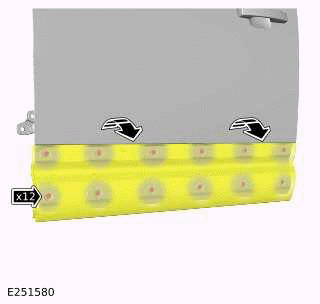

Release the 12 clips.

3.

Front Door Lower Moulding

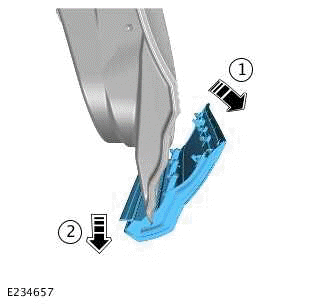

Remove the front door lower moulding as illustrated.

INSTALLATION

1.

Front Door Lower Moulding

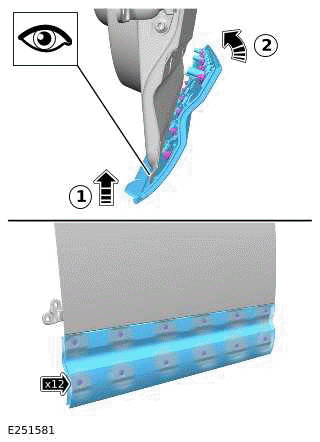

Install the front door lower moulding as illustrated.

2. Install and tighten the screw.
