Land Rover Defender: Front Door Latch

REMOVAL AND INSTALLATION

REMOVAL

CAUTION: Protect the surrounding paintwork to avoid damage.

NOTES:

1. Disconnect the startup battery ground cable.

2. Remove the front door window regulator.

3.

Front Door Latch

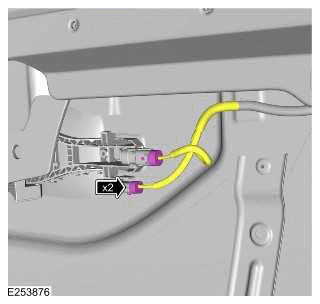

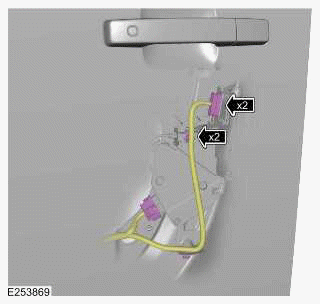

Disconnect the 2 electrical connectors from the exterior door handle assembly.

4.

Front Door Latch

5.

Front Door Latch

6.

Front Door Latch

7.

Front Door Latch

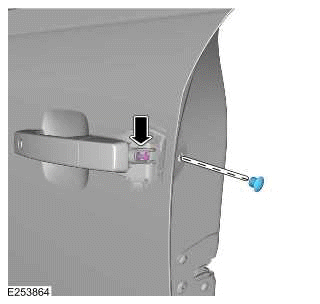

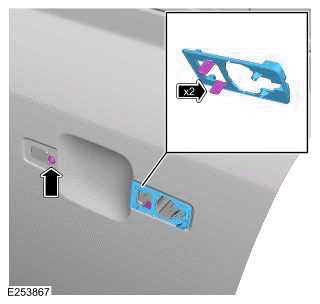

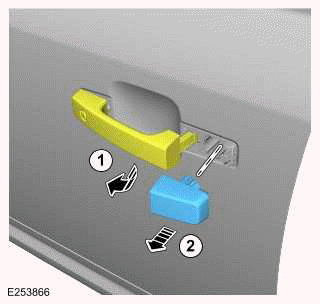

Remove the front door exterior handle as illustrated.

8.

Front Door Latch

9.

Front Door Latch

10.

NOTE: Do not disassemble further if the component is removed for access only.

Front Door Latch

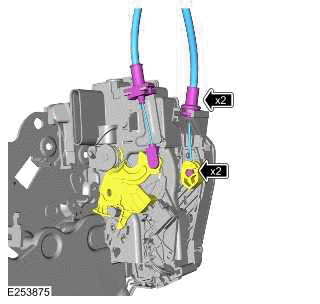

Release the 2 plugs as illustrated.

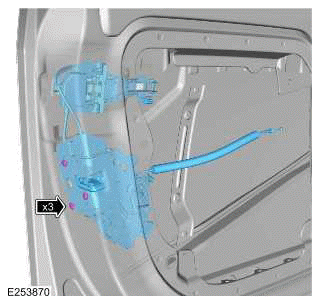

11.

Front Door Latch

12.

Front Door Latch

13.

Front Door Latch

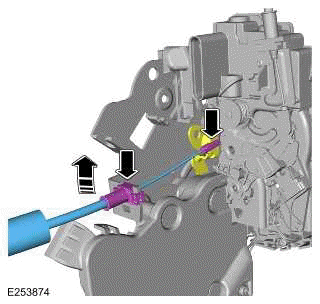

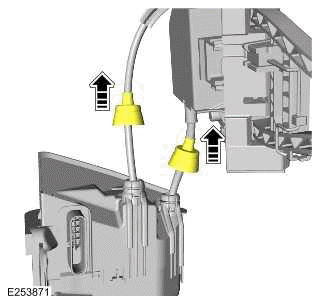

Disconnect the interior door release cable from the door latch.

14.

Front Door Latch

INSTALLATION

1.

Front Door Latch

2. Connect the interior door release cable to the door latch.

3.

Front Door Latch

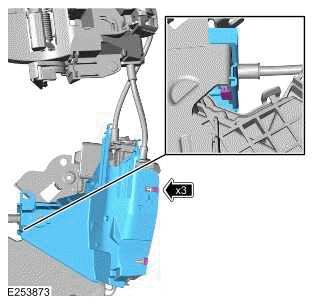

Install the front door latch lower cover to the latch.

4.

Front Door Latch

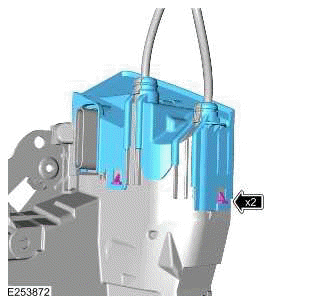

Install the front door latch upper cover to the latch.

5. Move the 2 plugs in to the original position.

6.

Front Door Latch

7.

Front Door Latch

8. Install the front door exterior handle.

9.

10.

Front Door Latch

11.

12. Connect the 2 electrical connectors to the exterior door handle assembly.

13. Install the front door window regulator.

14. Connect the startup battery ground cable.
