Land Rover Defender: Front Door Check Arm
REMOVAL AND INSTALLATION
REMOVAL
CAUTION:
Protect the surrounding paintwork to avoid damage.
NOTES:
- This procedure contains illustrations for left side components, right
side components are similar.
- This procedure contains illustrations showing certain components
removed to provide extra clarity.
- This procedure contains some variation in the illustrations depending
on the vehicle specification, but the
essential information is always correct.
1. Disconnect the startup battery ground cable.
2. Remove the front door trim panel.
3.

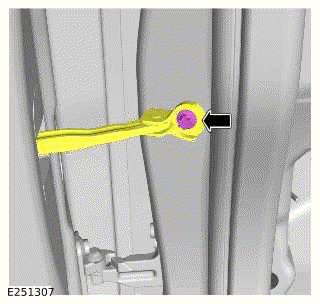

.png)
- Remove the bolt.
- Disconnect the front door check arm.
4.

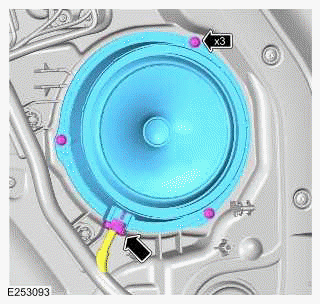

.png)
- Disconnect the electrical connector from the bass speaker.
- Remove the 3 screws.
- Remove the front door bass speaker.
5.

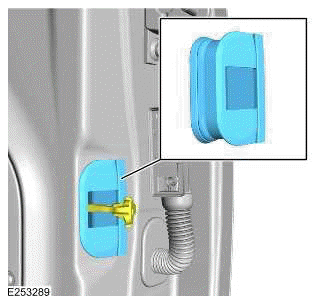

.png)
Remove the rubber access cover.
6.

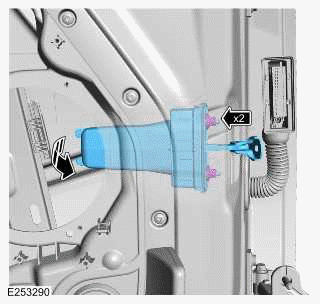

.png)
- Remove the 2 nuts.
- Remove the front door check arm.
INSTALLATION
1.
- Install the front door check arm.
- Install and tighten the 2 nuts.
Torque: 9Nm
2. Install the access cover.
3.
- Install the front door bass speaker.
- Connect the electrical connector to the bass speaker.
- Install and tighten the 3 screws.
Torque: 2Nm
4.
- Connect the front door check arm.
- Install and tighten the bolt.
Torque: 25Nm
5. Install the front door trim panel.
6. Connect the startup battery ground cable.
