Land Rover Defender: Fuel Flap
REMOVAL AND INSTALLATION
REMOVAL
NOTES:
- This procedure contains some variation in the illustrations depending
on the vehicle specification, but the
essential information is always correct.
- This procedure contains illustrations showing certain components
removed to provide extra clarity.
- Protect the surrounding paintwork and body.
1.
.png)

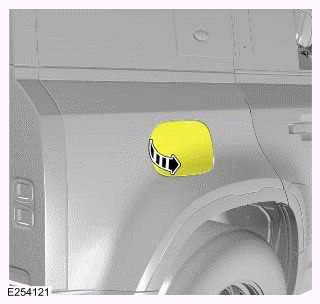

Open the fuel flap.
2.
.png)

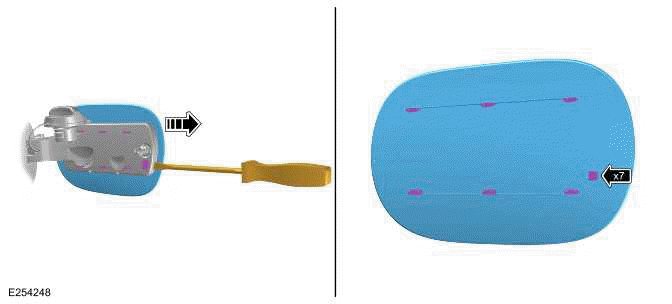

- Release the clip.
- Remove the fuel flap.
INSTALLATION
1.
CAUTION:
Make sure that the clips are correctly located.
Install the fuel flap.
