Land Rover Defender: Seats - [+] 6 Seat Configuration - Control Diagram

Land Rover Defender 2020-2026 Service Manual / Body and Paint / Seating / Seats - [+] 6 Seat Configuration / Seats - [+] 6 Seat Configuration - Control Diagram

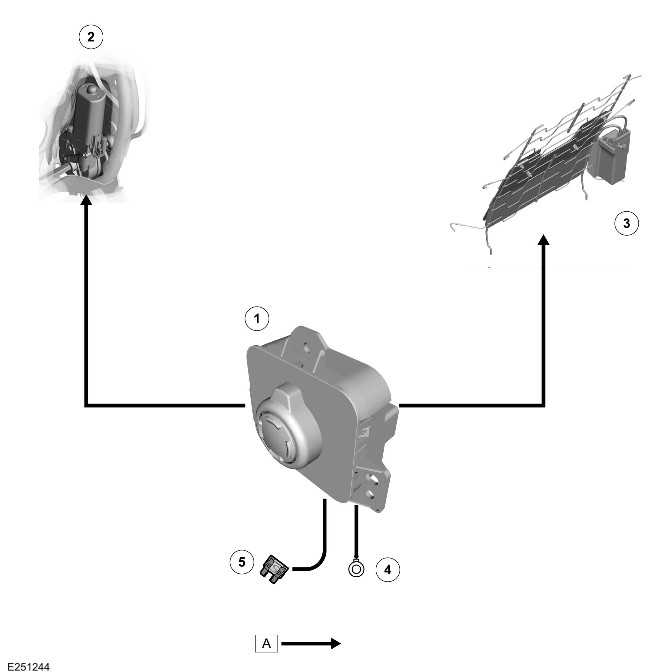

CONTROL DIAGRAM - 1 OF 6 - MANUAL SEAT ADJUSTMENT

Seats - [+] 6 Seat Configuration

A = HARDWIRED.

  1. Seat switchpack
  2. Seat backrest recline motor
  3. Air reservoir valve block

CONTROL DIAGRAM - 2 OF 6 - DRIVER SEAT ADJUSTMENT WITH SEAT MEMORY

NOTE: Vehicle with 3 doors is shown, vehicle with 5 doors is similar.

Seats - [+] 6 Seat Configuration

A = HARDWIRED: O = LIN: AZ = HS CAN BODY SYSTEMS BUS: BA = HS CAN HMI SYSTEMS BUS: BM = HS ISOLATED CONTROLLER AREA NETWORK (ISL CAN) SYSTEMS BUS.

  1. DSM
  2. BCM/ GWM
  3. TCU
  4. IPC
  5. FCDIM
  6. Front row seat cushion tilt motor
  7. Front row seat backrest recline motor
  8. Front row seat height motor
  9. Front row seat forward/rearward motor
  10. Ground
  11. Power supply
  12. Lumbar air pump
  13. Air reservoir valve block
  14. Front row seat switchpack
  15. Front row seat away switch
  16. Seat memory switch
  17. DDM

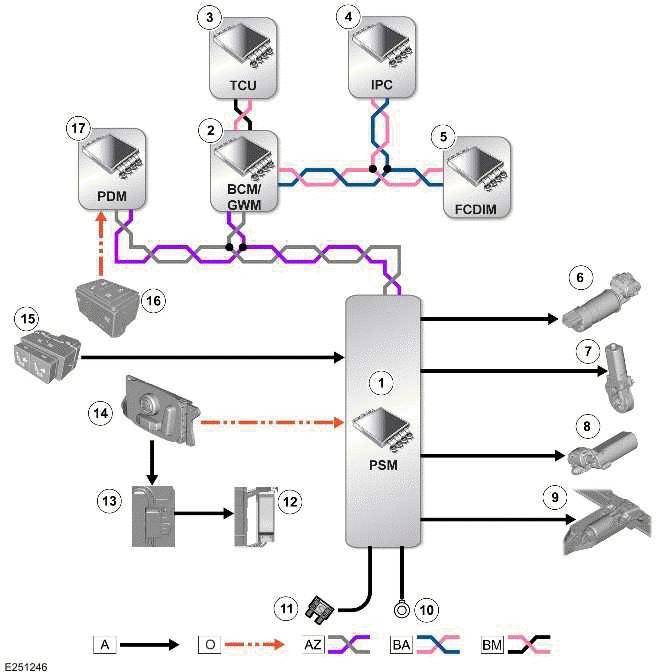

CONTROL DIAGRAM - 3 OF 6 - PASSENGER SEAT ADJUSTMENT WITH SEAT MEMORY

NOTE: Vehicle with 3 doors is shown, vehicle with 5 doors is similar.

Seats - [+] 6 Seat Configuration

A = HARDWIRED: O = LIN: AZ = HS CAN BODY SYSTEMS BUS: BA = HS CAN HMI SYSTEMS BUS: BM = HS ISL CAN SYSTEMS BUS.

  1. PSM
  2. BCM/ GWM
  3. TCU
  4. IPC
  5. FCDIM
  6. Front row seat cushion tilt motor
  7. Front row seat backrest recline motor
  8. Front row seat height motor
  9. Front row seat forward/rearward motor
  10. Ground
  11. Power supply
  12. Lumbar air pump
  13. Air reservoir valve block
  14. Front row seat switchpack
  15. Front row seat away switch
  16. Seat memory switch
  17. PDM

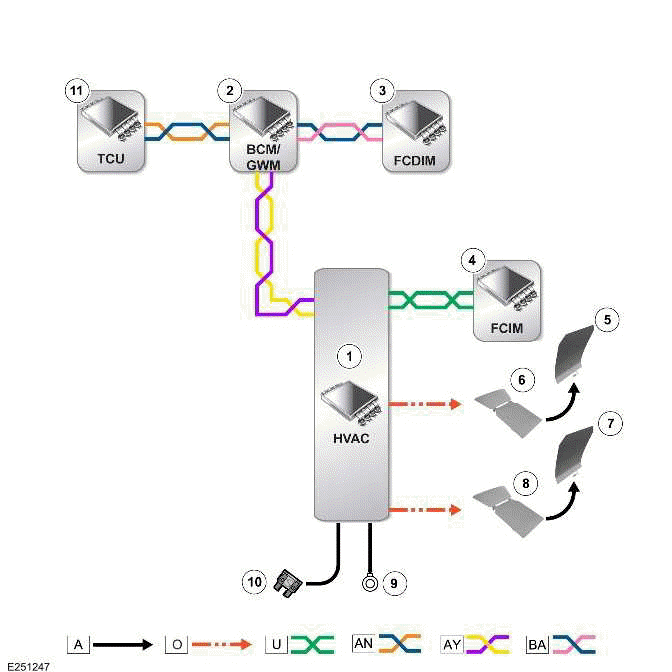

CONTROL DIAGRAM - 4 OF 6 - FRONT ROW SEAT HEATER

NOTE: Vehicle with 5 doors is shown, vehicle with 3 doors is similar.

Seats - [+] 6 Seat Configuration

A = HARDWIRED: O = LIN : U = PRIVATE CAN: AN = HS CAN POWERTRAIN SYSTEMS BUS: AY = HS CAN POWER MODE ZERO SYSTEMS BUS: BA = HS CAN HMI SYSTEMS BUS.

  1. HVAC control module
  2. BCM/ GWM
  3. FCDIM
  4. FCIM
  5. Front row seat backrest heater - Right
  6. Front row seat cushion heater - Right
  7. Front row seat backrest heater - Left
  8. Front row seat cushion heater - Left
  9. Ground
  10. Power supply
  11. TCU

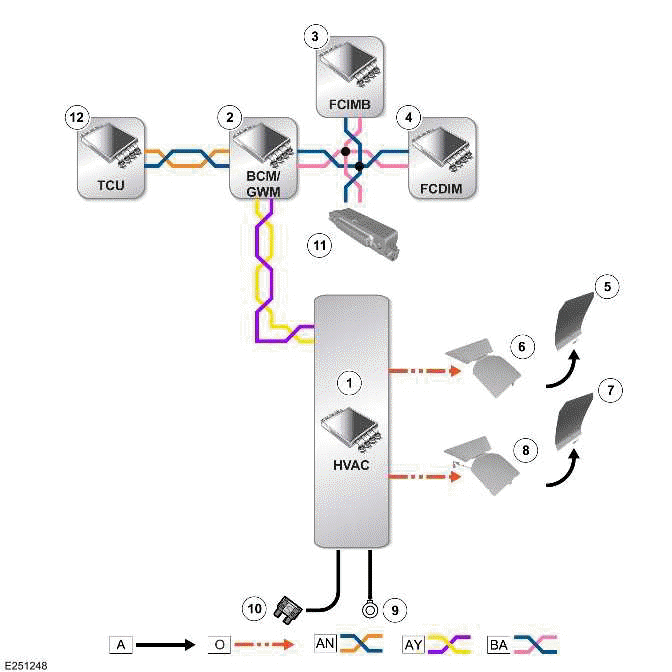

CONTROL DIAGRAM - 5 OF 6 - SECOND ROW SEAT HEATER

NOTE: Vehicle with 5 doors is shown, vehicle with 3 doors is similar.

Seats - [+] 6 Seat Configuration

A = HARDWIRED: O = LIN: AN = HS CAN POWERTRAIN SYSTEMS BUS: AY = HS CAN POWER MODE ZERO SYSTEMS BUS: BA = HS CAN HMI SYSTEMS BUS.

  1. HVAC control module
  2. BCM/ GWM
  3. FCIMB (if equipped)
  4. FCDIM
  5. Second row seat backrest heater - Right
  6. Second row seat cushion heater - Right
  7. Second row seat backrest heater - Left
  8. Second row seat cushion heater - Left
  9. Ground
  10. Power supply
  11. Rear seat heater switch (if equipped)
  12. TCU

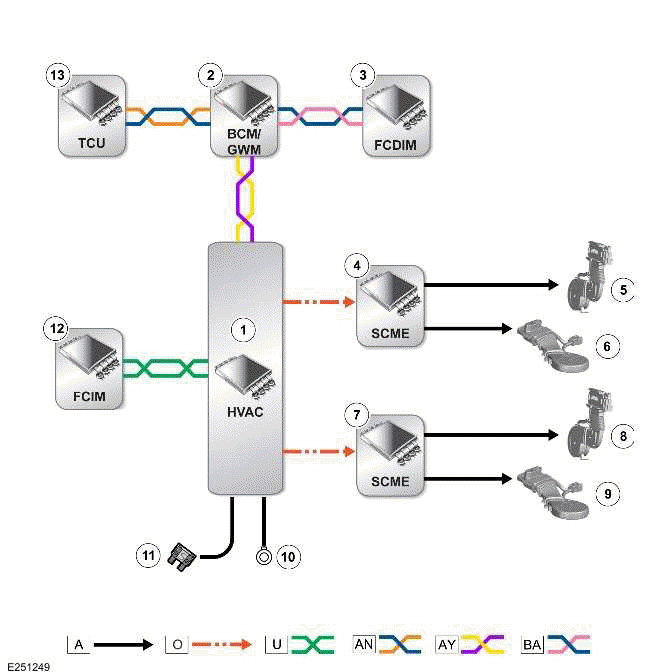

CONTROL DIAGRAM - 6 OF 6 - FRONT ROW CLIMATE SEAT

NOTE: Vehicle with 5 doors is shown, vehicle with 3 doors is similar.

Seats - [+] 6 Seat Configuration

A = HARDWIRED: O = LIN : U = PRIVATE CAN: AN = HS CAN POWERTRAIN SYSTEMS BUS: AY = HS CAN POWER MODE ZERO SYSTEMS BUS: BA = HS CAN HMI SYSTEMS BUS.

  1. HVAC control module
  2. BCM/ GWM
  3. FCDIM
  4. Driver SCME
  5. Front row seat backrest climate assembly - Driver seat
  6. Front row seat cushion climate assembly - Driver seat
  7. Passenger SCME
  8. Front row seat backrest climate assembly - Passenger seat
  9. Front row seat cushion climate assembly - Passenger seat
  10. Ground
  11. Power supply
  12. FCIM
  13. TCU
