Land Rover Defender: Floor Console Cup Holder
REMOVAL AND INSTALLATION
REMOVAL
NOTE:
- This procedure contains some variation in the illustrations depending
on the vehicle specification, but the
essential information is always correct.
- This procedure contains illustrations showing certain components
removed to provide extra clarity.
1. Disconnect the startup battery ground cable.
2. Remove the floor console upper panel.

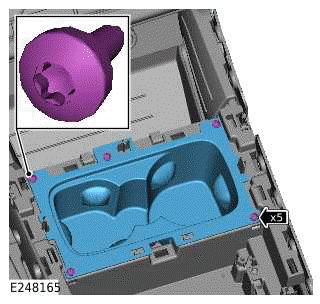

3.
.png)
- Remove the 5 bolts.
- Remove the cup holder.
INSTALLATION
1.
- Install the cup holder.
- Install and tighten the 5 bolts.
Torque: 1.2Nm
2. Install the floor console upper panel.
3. Connect the startup battery ground cable.
