Land Rover Defender: Floor Console Stowage Compartment Lid

REMOVAL AND INSTALLATION

REMOVAL

NOTE:

1.

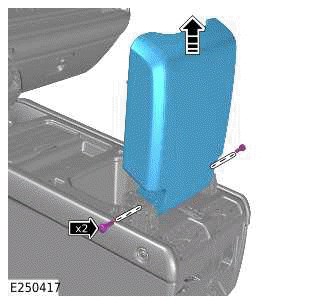

Floor Console Stowage Compartment Lid

2.

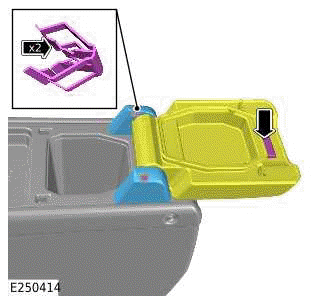

Floor Console Stowage Compartment Lid

INSTALLATION

1.

2. Install the floor console stowage compartment lid covers.

3. Close the floor console stowage compartment lid.
