Land Rover Defender: Cool Air Bypass Motor
REMOVAL AND INSTALLATION
REMOVAL
NOTES:
- This procedure contains some variation in the illustrations depending
on the vehicle specification, but the
essential information is always correct.
- This procedure contains illustrations showing certain components
removed to provide extra clarity.
1. Disconnect the startup battery ground cable.
2. Remove the instrument panel upper section.
3.

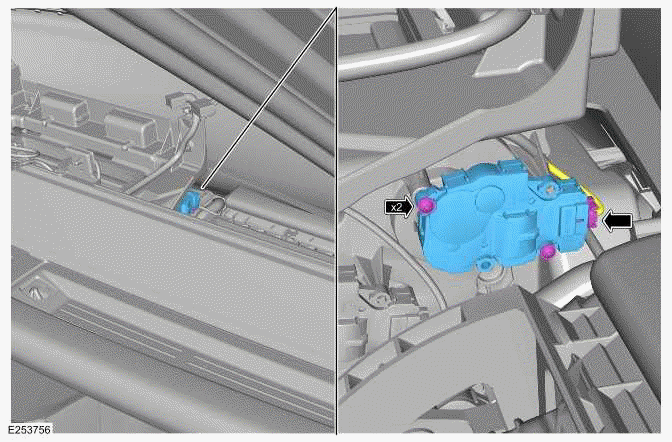

.png)
- Disconnect the electrical connector from the cool air bypass motor.
- Remove the 2 screws.
- Remove the cool air bypass motor.
INSTALLATION
1.
- Install the cool air bypass motor.
- Install and tighten the 2 screws.
Torque: 1.2Nm
- Connect the electrical connector to the cool air bypass motor.
2. Install the instrument panel upper section.
3. Connect the startup battery ground cable.
