Land Rover Defender: Distribution Motor - Right Front Face/Feet
REMOVAL AND INSTALLATION
REMOVAL
NOTES:
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- This procedure contains illustrations showing certain components removed to provide extra clarity.
The following step(s) applies to: All vehicles
1. Disconnect the startup battery ground cable.
The following step(s) applies to: Left hand drive vehicles
2. Remove the instrument panel upper section.
The following step(s) applies to: Right hand drive vehicles
3. Remove the instrument panel lower trim.

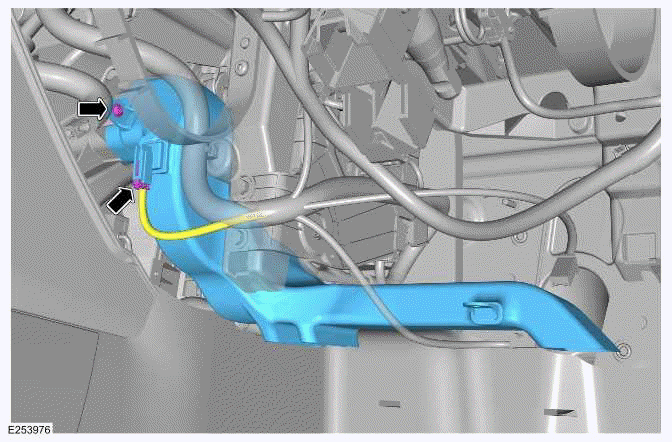

4.
.png)
- Disconnect the electrical connector from the air duct temperature sensor.
- Remove the screw.
- Remove the front right footwell air duct.

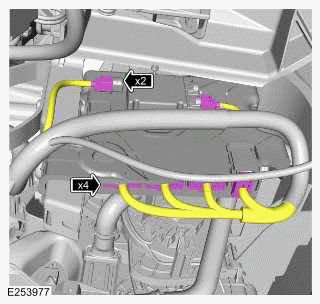

5.
.png)
- Disconnect the 4 electrical connectors from the HVAC control module (HVAC).
- Disconnect the 2 electrical connectors from the Universal Serial Bus (USB).

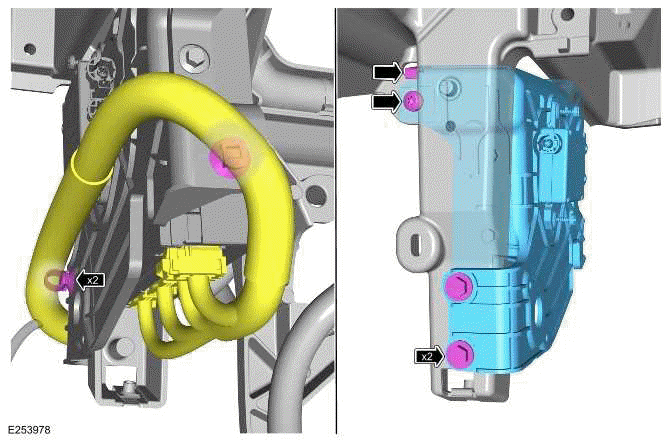

6.
.png)
- Release the 2 wiring harness clips.
- Remove the 3 bolts.
- Remove the HVAC bracket.
The following step(s) applies to: All vehicles

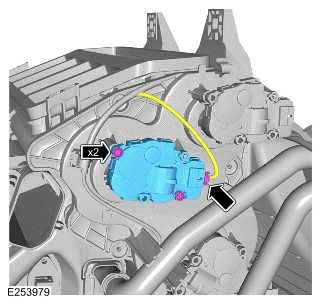

7.
.png)
- Disconnect the electrical connector from the right front face/feet distribution motor.
- Remove the 2 screws.
- Remove the front right face/feet distribution motor.
INSTALLATION
The following step(s) applies to: All vehicles
1.
- Install the front right face/feet distribution motor.
- Install and tighten the 2 screws.
Torque: 1.2Nm
- Connect the electrical connector to the front right face/feet distribution motor.
The following step(s) applies to: Left hand drive vehicles
2. Install the instrument panel upper section.
The following step(s) applies to: Right hand drive vehicles
3.
- Install the HVAC control module bracket.
- Install and tighten the 3 bolts.
Torque: 5Nm
- Secure the 2 wiring harness clips.
- Connect the 4 electrical connectors to the HVAC control module.
- Connect the 2 electrical connectors to the Universal Serial Bus (USB).
4.
- Install the front right footwell air duct.
- Install and tighten the screw.
Torque: 1.2Nm
- Connect the electrical connector to the air duct temperature sensor.
5. Install the instrument panel lower trim.
The following step(s) applies to: All vehicles
6. Connect the startup battery ground cable.
